Colour-matched composite posts
Same WPC material.
One coordinated product range.

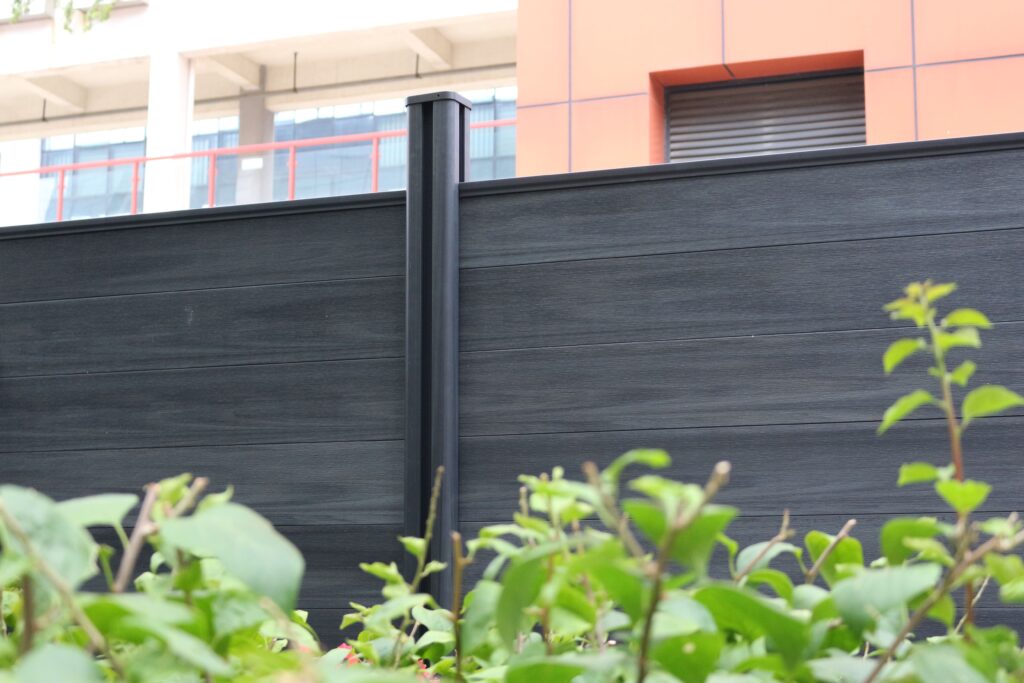

MecoFence posts and WPC fence boards are made from the same wood-plastic composite with the same co-extruded protective layer. For trade partners this means one material specification, one colour palette and one manufacturer across the whole fence. Where a project calls for a single wood-grain colour from post to board, the Super Kit post is the MecoFence alternative to the silver or black aluminium Y-post.
Why it lasts
Built to stay straight.
Finished to stay matched
A composite post has to do three things well: keep its surface, stay rigid in the ground and match the boards beside it. The Super Kit post is designed around all three.
Recycled inputs
Recycled wood fibres and plastic put recovered materials back into use. Extend the recycled-material proposition of your WPC panels to the posts in the same product range.

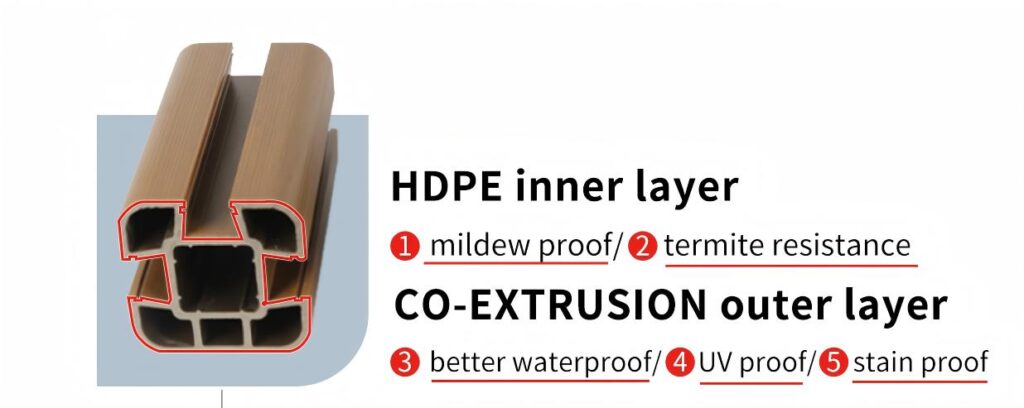

Water & UV protection
The Surlyn outer layer is co-extruded around all four faces of the post, not only the visible face. It resists moisture, staining and UV fading to the same standard as MecoFence boards, so post and board weather together over the years.
Concealed base, rigid post
A 500 mm steel base sits inside the hollow post and is either anchored to the slab or set in concrete. MecoFence locating fittings fill the clearance between base and post, so the post stands rigid with no wobble and no exposed metal.
At a glance
Product Specifications
Review dimensions, materials and component options for procurement and project planning.
- Post material
- Co-extruded wood-plastic composite (WPC) — the same composite material as MecoFence WPC fence boards
- Post cross-section
(W × D) -
110 × 110 mm
(approx. 4.33 × 4.33 in / 0.361 × 0.361 ft) - Outer layer
- Full-wrap co-extruded Surlyn shell on all four faces; moisture- and UV-resistant
- Standard post length
-
1.8 m / 1,800 mm
(approx. 5.91 ft) — for a 1.8 m fence on a surface-mounted base - Recycled material inputs
- Recycled wood fibre and plastic
- Custom post lengths
-
0.5–3 m / 500–3,000 mm
(approx. 1.64–9.84 ft) - Standard colours

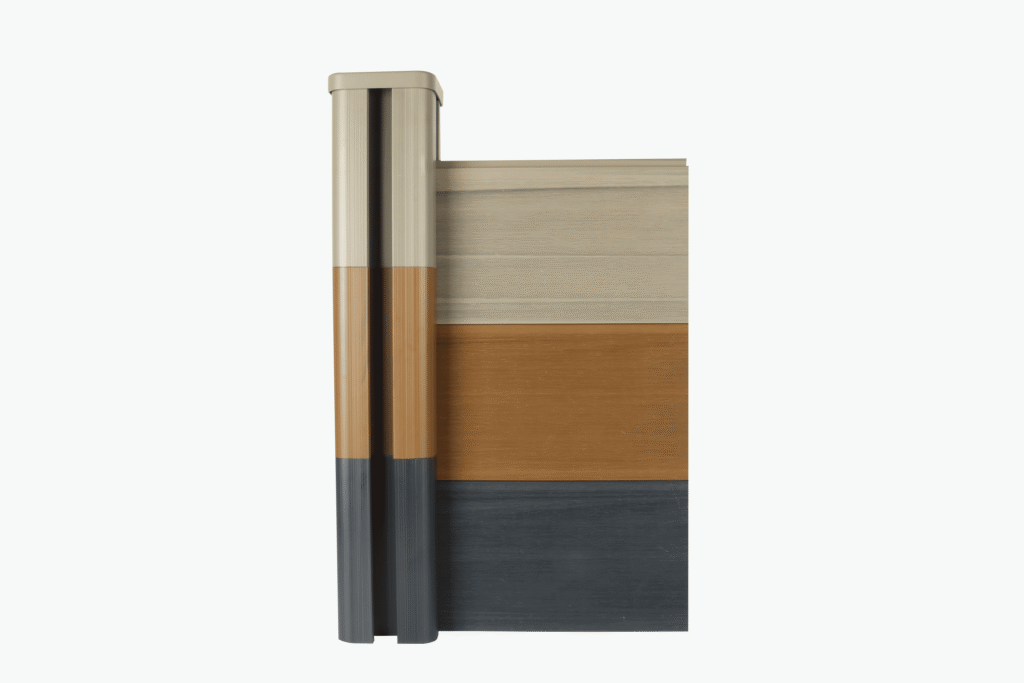

- MecoFence Teak · Dark Grey · Antique — matched to the board range
- Post base
- Internal steel base 110 × 110 × 500 mm, approx. 1.5 kg, concealed inside the post
- Custom colours
- Available on request, subject to sample approval
- Post fittings
- Fittings A, B and C — locating fittings between post and base, 3 per post
- Aluminium cap kit
- Cap 110 × 110 × 33 mm · 4 L-fix brackets 51 × 46 × 24 mm · 4 × M10×80 anchors · 5 × M4×25 stainless screws
- Rails
- 30 × 30 mm, 2 per bay, 1.72 m — shared with the MecoFence aluminium post system
- Installation
-
A. Surface: 8 mm base plate + 40 × 40 × 3 mm steel tube,
500 mm high, anchored to concrete
B. In-ground: 40 × 40 × 3 mm steel tube, 1,000 mm long, 500 mm set in concrete - Compatible boards

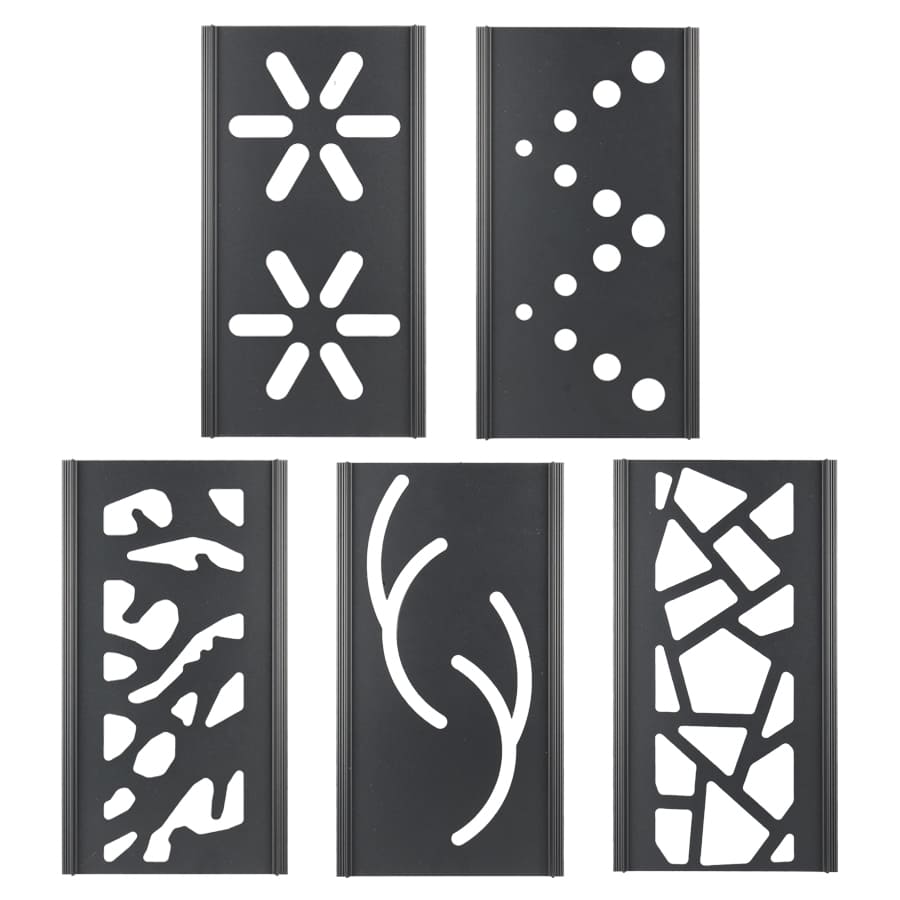

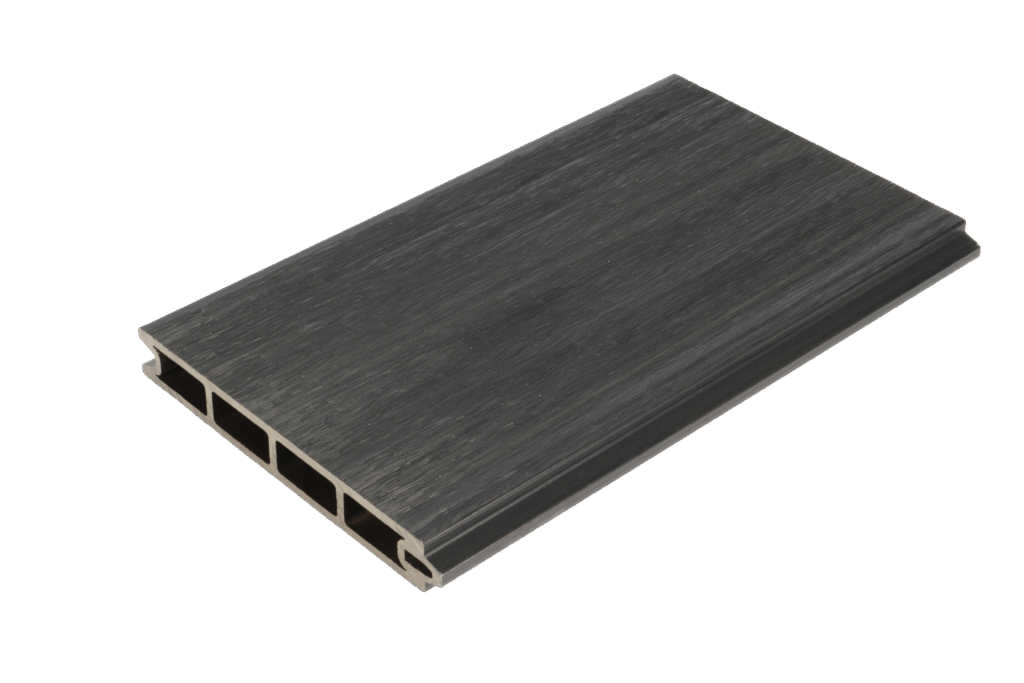

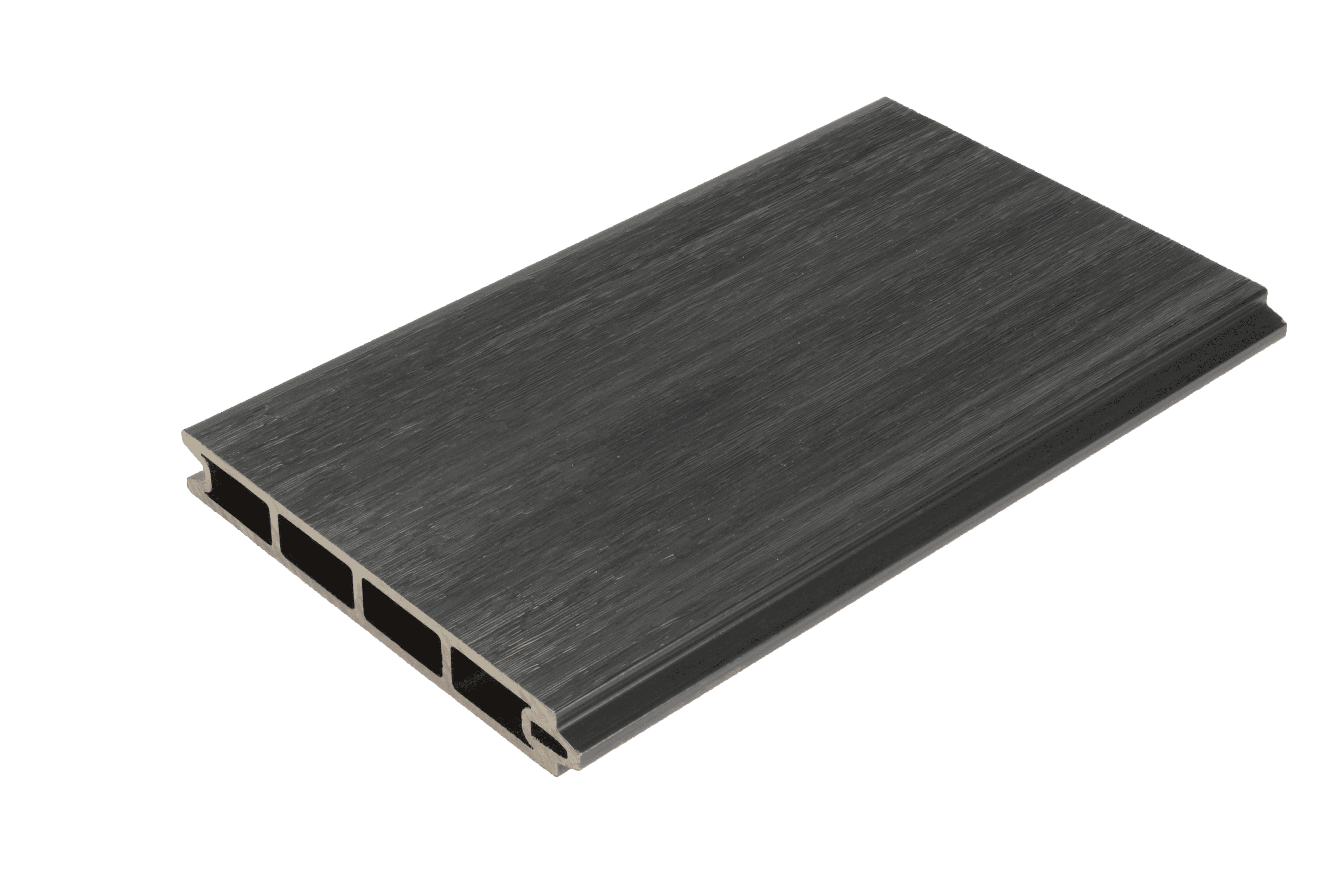

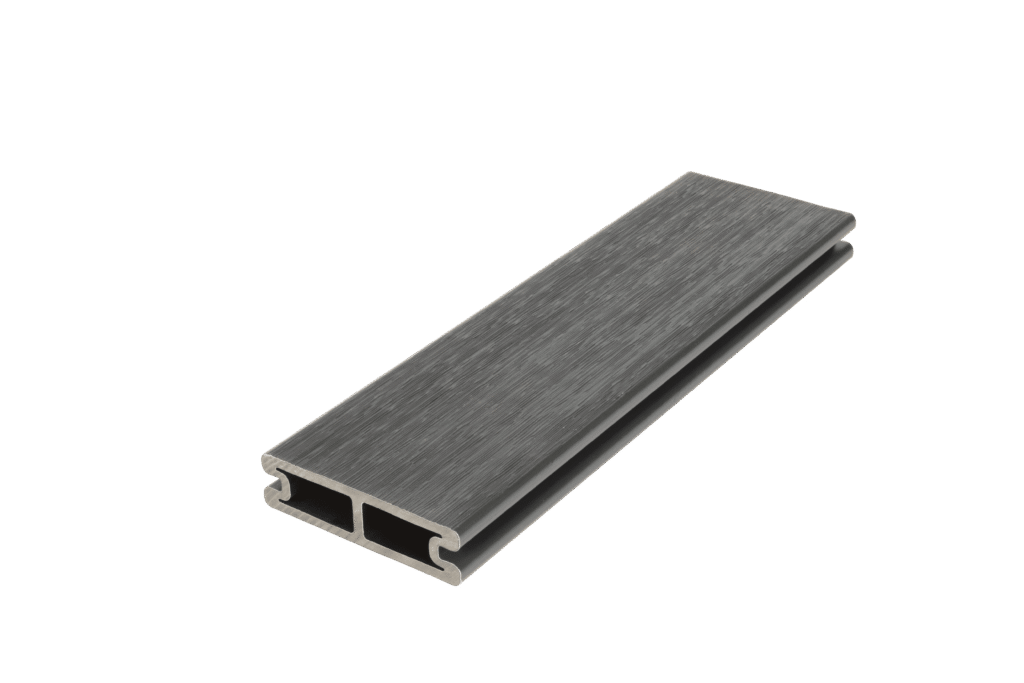

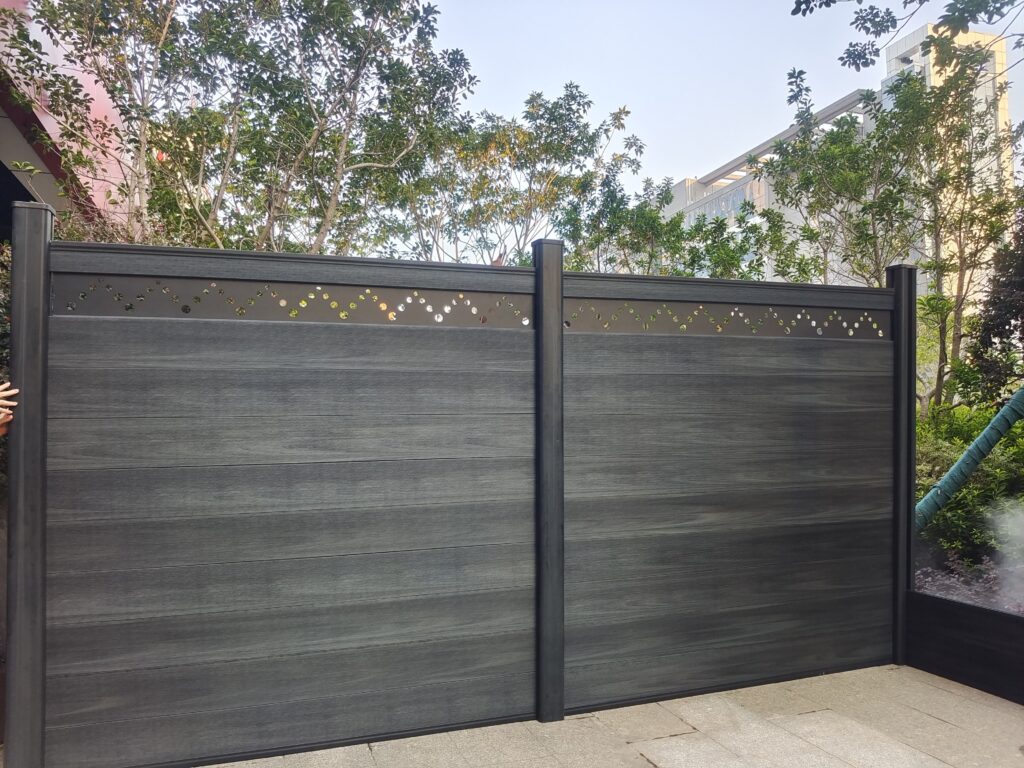

- MecoFence 24 mm co-extruded boards: Privacy 180 × 24 · Trellis 90 × 24 · Slat wall 176 × 24 · Carven aluminium screen 1,720 × 161 mm
- MOQ
- 100 sets
- Container loading
-
Approx. 200 sets / 20 ft · 400 sets / 40 ft
Posts packed 2 per bag, 60 per pallet - Warranty
- 20-Year Residential / 15-Year Commercial Warranty
- Documentation
- Request applicable specifications, certificates and test reports

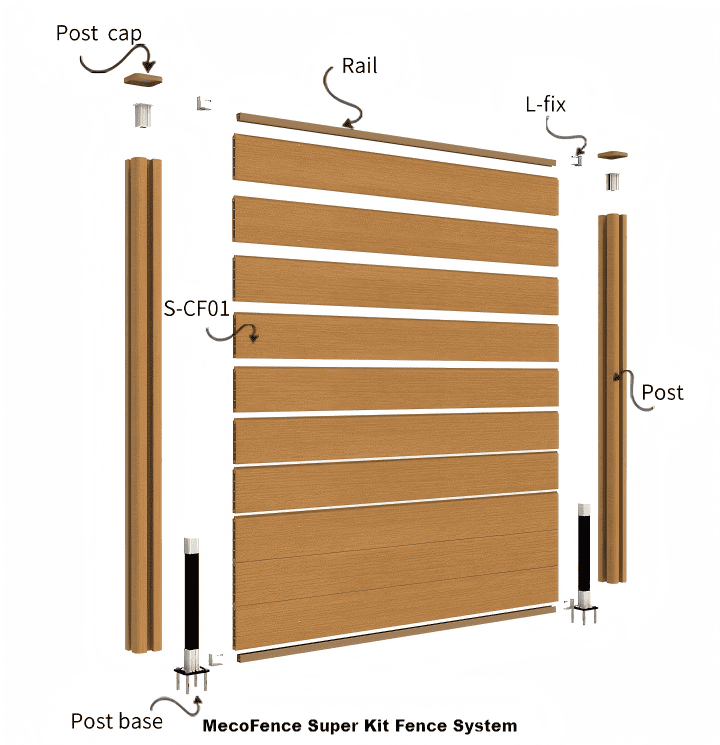

Post assembly
Fittings, base & cap.
Each Super Kit post ships with its internal base, three locating fittings and an aluminium cap kit. The base enters the post from below and is anchored or set in concrete; fittings A–C seat the post on the base and stop lateral movement; the cap kit carries the four L-fix brackets that hold the rails. The bill of materials is confirmed per order.
Post fitting A
Post fitting B
Post fitting C
Post base
Aluminium cap
Complete fence configurations and system components:
MecoFence post range
Aluminium Y-post
or WPC Super Kit post?
MecoFence makes both posts for the same fence system. Specify the aluminium Y-post where maximum rigidity and the patented Y-groove matter most; specify the WPC Super Kit post where a single colour from post to board and a concealed base are the priority. Both run on the same 30 × 30 mm rails and 24 mm co-extruded boards, so either can be offered from one stocked range.
Aluminium Y-post
80 × 80 mm, 1.7 mm wall (1.3 mm option)
Patented Y-groove · powder-coated silver / black
Surface base plate · 85 × 85 mm aluminium cap.
WPC Super Kit post
110 × 110 mm co-extruded WPC
Colour-matched · Teak / Dark Grey / Antique
Concealed internal base · 110 × 110 mm aluminium cap.
