Aluminium fence post

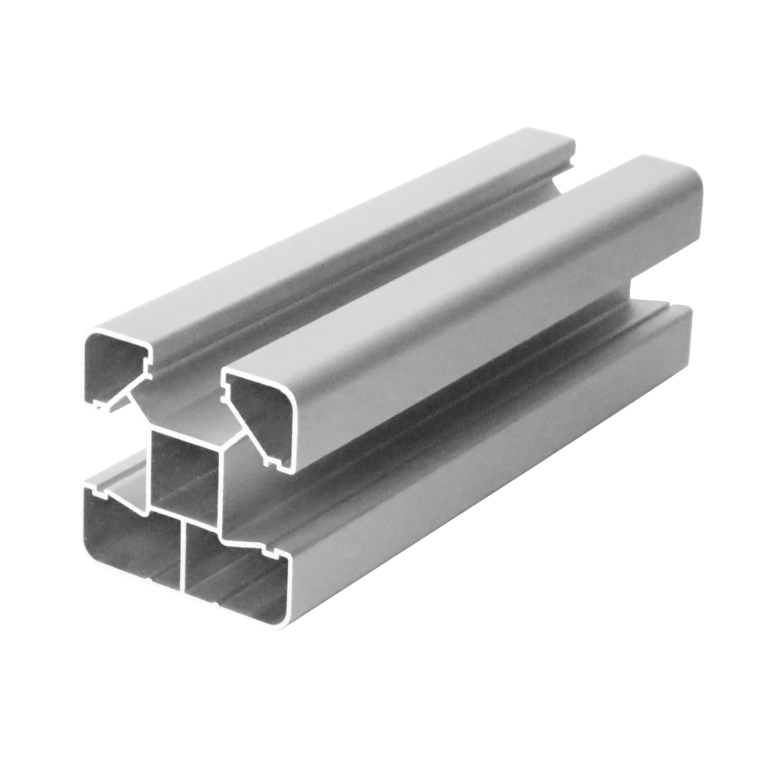

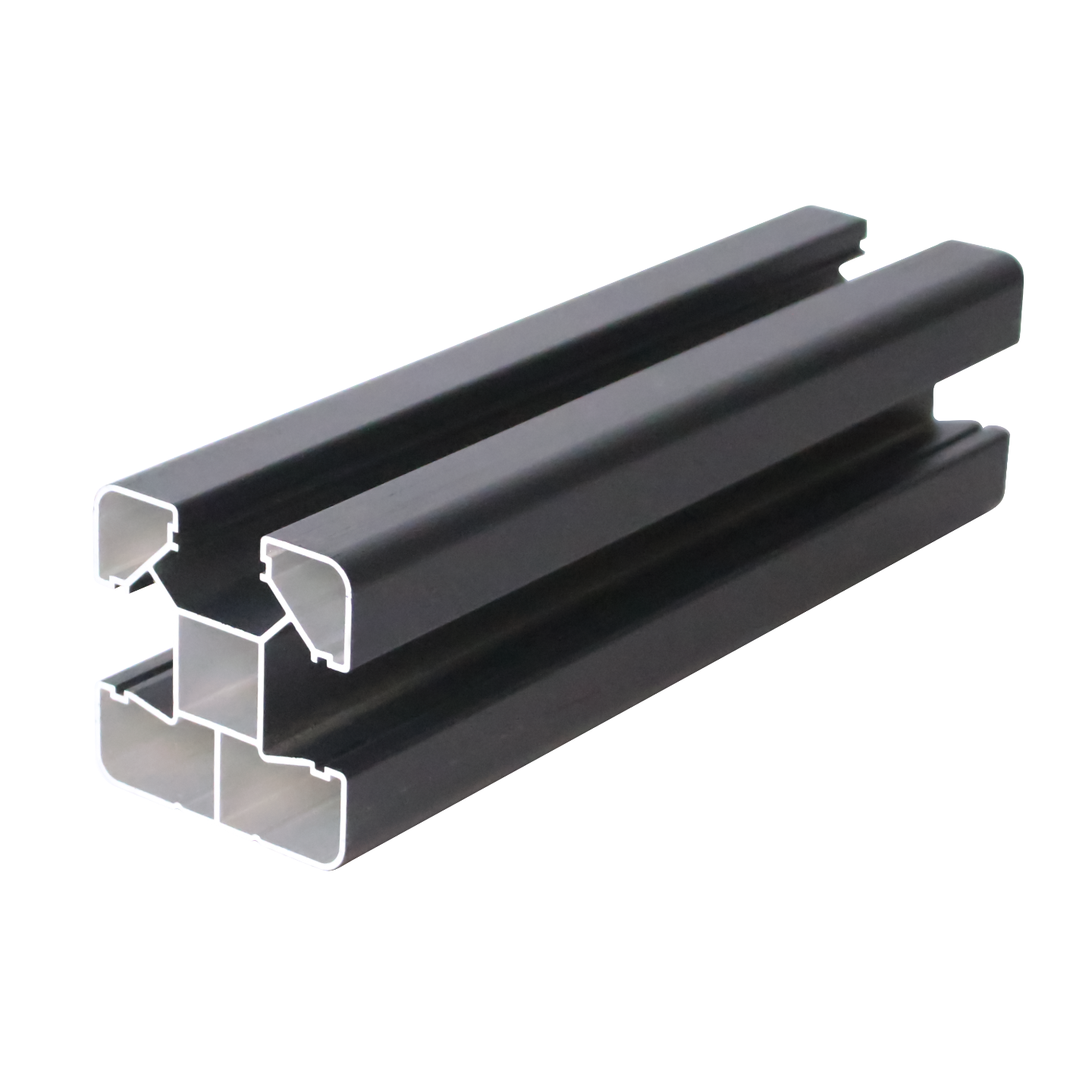

The MecoFence Y‑post.
The MecoFence square aluminium post is built for long fence runs: 80 × 80 mm section, thick extruded wall, heavy powder coat. The patented Y-groove holds each board on two angled edges, gives it room to move and lets water drain. Available in black or silver.
Why it lasts
Three numbers decide post life.
An aluminium fence post has to do three things well: carry the load, hold its shape and keep its finish. The MecoFence Y post is sized, extruded and coated around all three.
80 × 80 mm section
The full 80 mm section carries more load and keeps the fence line straight, even at 1.8 m height in exposed positions.
1.7 mm wall
1.7 mm of aluminium resists denting in transport and on site, and holds the Y-groove shape under board pressure for the life of the fence.
60 μm+ powder coating
60 microns of powder coat keeps the colour stable and the aluminium protected from corrosion, so the post finish lasts as long as the boards.
Patented Y-groove
Composite Fence Post.
Designed around the board.

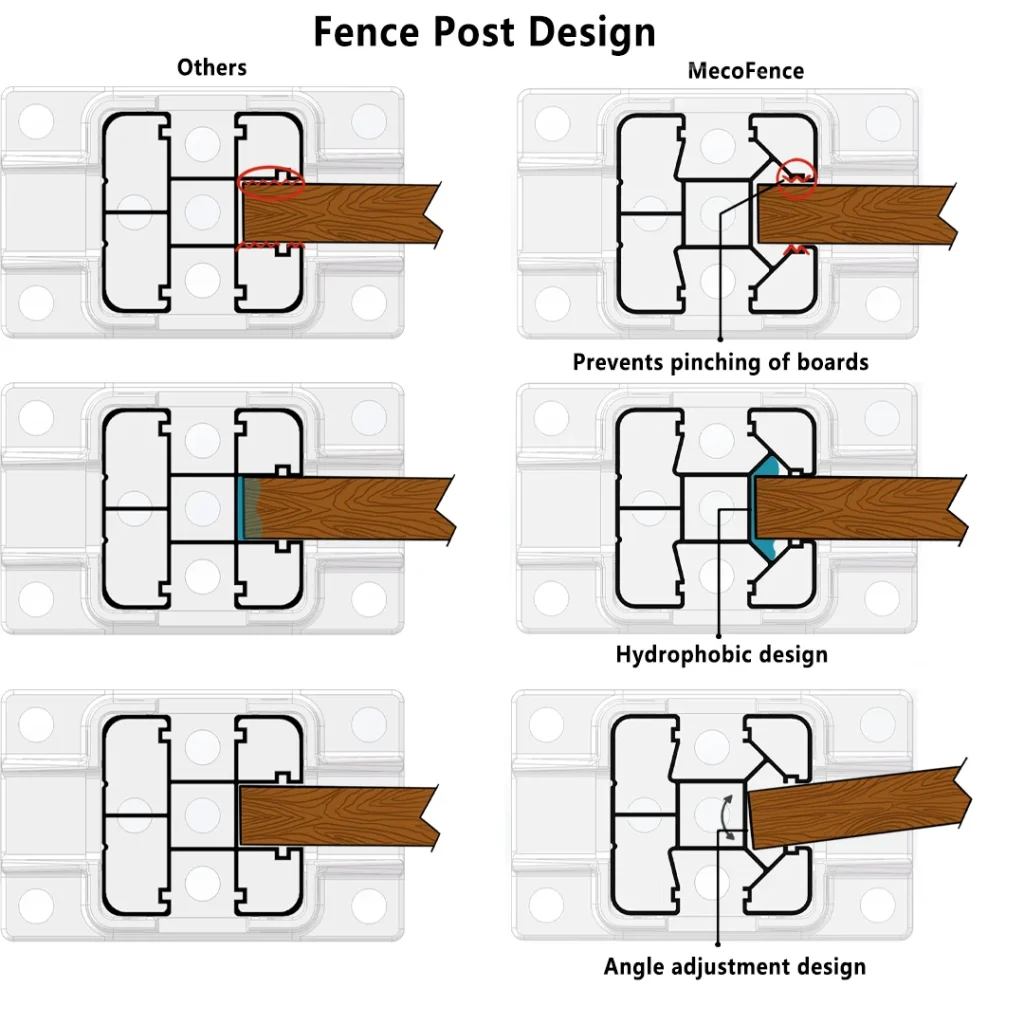

Flat grooves grip the board on its full face. The MecoFence Y-groove holds it on two angled edges instead, which changes how the board behaves in the post.
Prevents pinching
Less contact area, so the board can expand and contract with temperature without locking in the groove.
Hydrophobic design
The open Y-channel lets rainwater drain out instead of sitting against the board edge.
Angle adjustment
The board can turn a few degrees in the groove to follow a slope or an uneven fence line.
Patented design
Every angle in the Y-groove was worked out to solve a real problem on the fence line. That level of detail is why the design carries a MecoFence utility model patent.
At a glance
Product Specifications
Review dimensions, materials and component options for procurement and project planning.
- Post model
- MecoFence square aluminium Y-post
- Post cross-section
(W × D) -
80 × 80 mm
(approx. 3.15 × 3.15 in / 0.262 × 0.262 ft) - Post material
- Extruded aluminium alloy with a patented Y-groove on each board face
- Wall thickness
-
1.7 mm
(approx. 0.067 in) - Surface finish
- Powder coat, 60 μm minimum; colour-stable and corrosion-resistant
- Standard post length
-
2.3 m / 2,300 mm (approx. 7.55 ft) — includes 500 mm for in-ground setting
1.8 m / 1,800 mm (approx. 5.91 ft) — for a surface-mounted base - Standard colours
- Black · Silver
- Custom post lengths
- Available on request, confirmed at quotation
- Custom colours
- Available on request, subject to sample approval
- Post base
- Cast aluminium base for surface mounting — bolt-down on decking or expansion anchors on concrete
- Post cap
- Aluminium cap, 85 × 85 mm, colour-matched to the post
- Rails & brackets
- 30 × 30 mm aluminium rails · L-fix brackets · board spacers — shared across the MecoFence post system
- Installation
-
A. Ground: 2.3 m post cast in a concrete footing, 500 mm below ground
B. On-deck: 1.8 m post on cast aluminium base, bolted through decking
C. Surface: 1.8 m post on cast aluminium base, expansion anchors into slab or paving - Compatible boards
- MecoFence 24 / 25 mm co-extruded WPC boards — see MecoFence WPC fence boards
- MOQ
- 100 sets
- Container loading
-
Approx. 200 sets / 20 ft · 400 sets / 40 ft
Confirmed per fence style and post length at quotation - Warranty
- 20-Year Residential / 15-Year Commercial Warranty
- Documentation
- Utility model patent certificate, specifications, certificates and test reports on request — view the patent
Post assembly
Fittings, base & cap.
The post base is cast aluminium, not the moulded plastic socket supplied with many composite fences. Cap, rails and brackets are aluminium or stainless steel, so every fixing point matches the life of the post.
- 80 × 80 mm Y-groove post
- Cast aluminium post base
- Aluminium post cap
- 30 × 30 mm aluminium rails
- L-fix brackets
- Board spacers
Complete fence configurations and system components:
Installation
Three ways to set
a aluminum post.
Choose the foundation that matches the ground, surface and fence height on site. All three use the same 80 × 80 mm post and fittings
Three ways to set a MecoFence post.
Choose the foundation that matches the ground, surface and fence height on site. All three use the same 80 × 80 mm post and fittings.

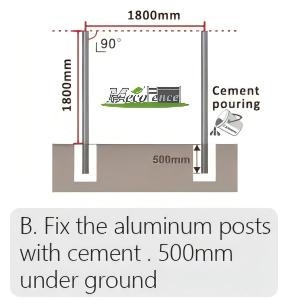

Concrete embedment
The post is set directly into a concrete footing cast in the ground. Highest stability for open ground, slopes and exposed sites.
- Surface
- Open ground
- Post length
- 2.3 m, 500 mm below ground
- Hardware
- None — post cast in concrete

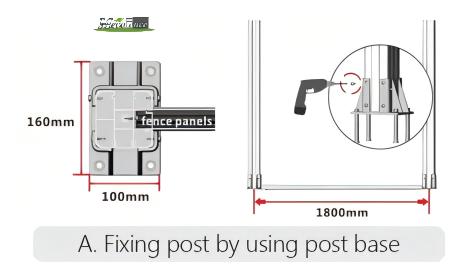

Deck anchoring
The cast aluminium base bolts directly through composite or timber decking. No concrete work needed for raised decks and pool surrounds.
- Surface
- Timber / WPC deck
- Post length
- 1.8 m on base
- Hardware
- Cast aluminium base, bolt-down
Concrete surface anchoring
Expansion anchors secure the cast aluminium base to an existing slab or paving. Retrofit a fence line without breaking the ground.
- Surface
- Concrete slab / Paving
- Post length
- 1.8 m on base
- Hardware
- Cast aluminium base, expansion anchors
MecoFence post range
Aluminium Y-post
vs other posts.

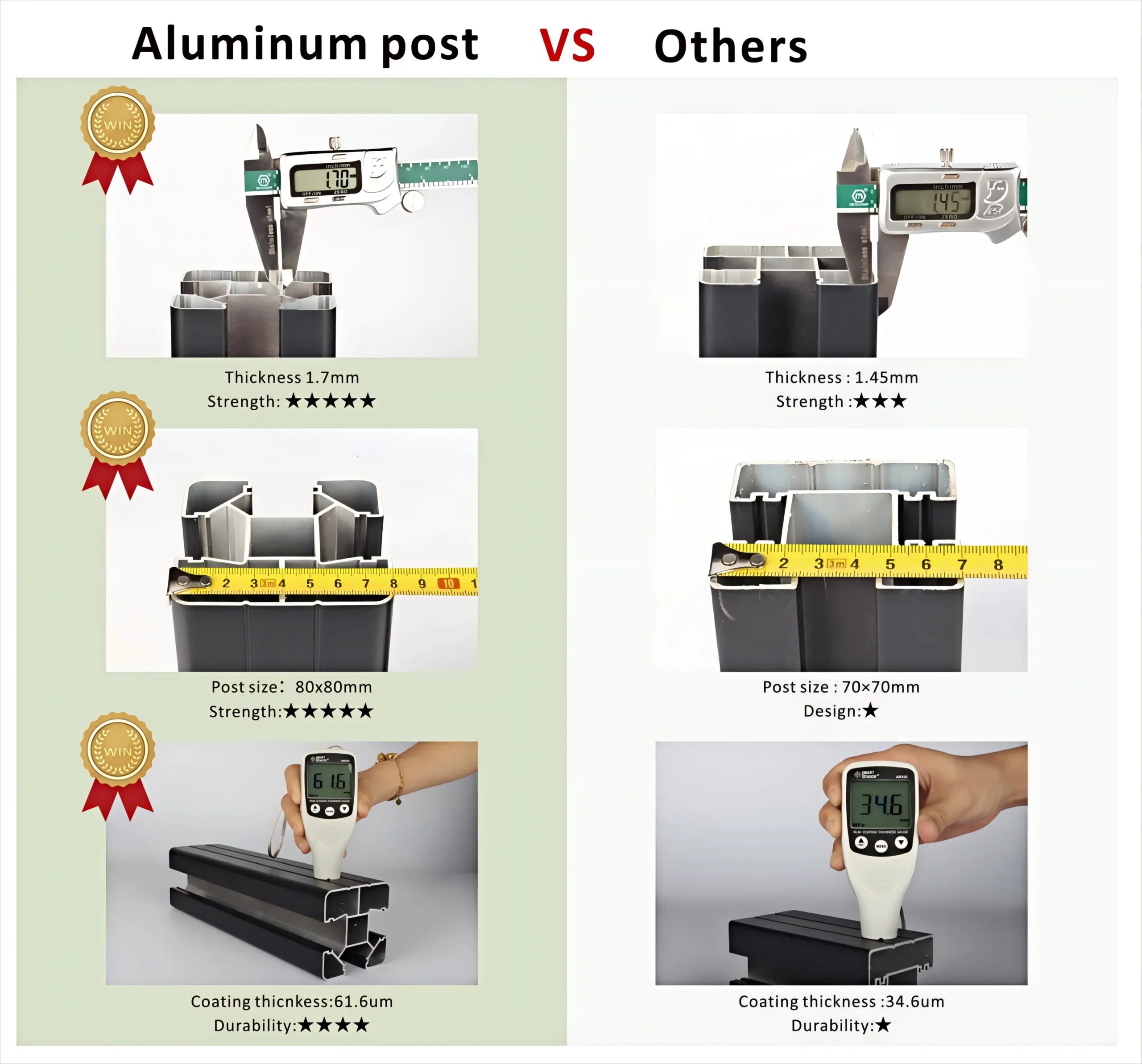

Measured side by side with a caliper, a tape and a coating gauge. The MecoFence post is thicker in the wall, larger in section and carries close to twice the powder coat of a typical aluminium fence post.
| MEASURED | MECOFENCE | OTHERS |
|---|---|---|
| Wall thickness | 1.7 mm | 1.45 mm |
| Post size | 80 × 80 mm | 70 × 70 mm |
| Coating thickness | 61.6 μm | 34.6 μm |
