MecoFence · Dual-Tone Fluted
Dual-Tone
Fluted Fence System
Double-sided fluted WPC boards with recessed black grooves. The S-CF 05 system supports horizontal and vertical layouts with configuration-specific posts, rails and fittings.
Fluted Dual-Tone
Double-sided design
2 layouts
Vertical or horizontal configuration
8
Standard Dual-Tone finishes
20 / 15 yr
Residential / commercial warranty
Choose your layout

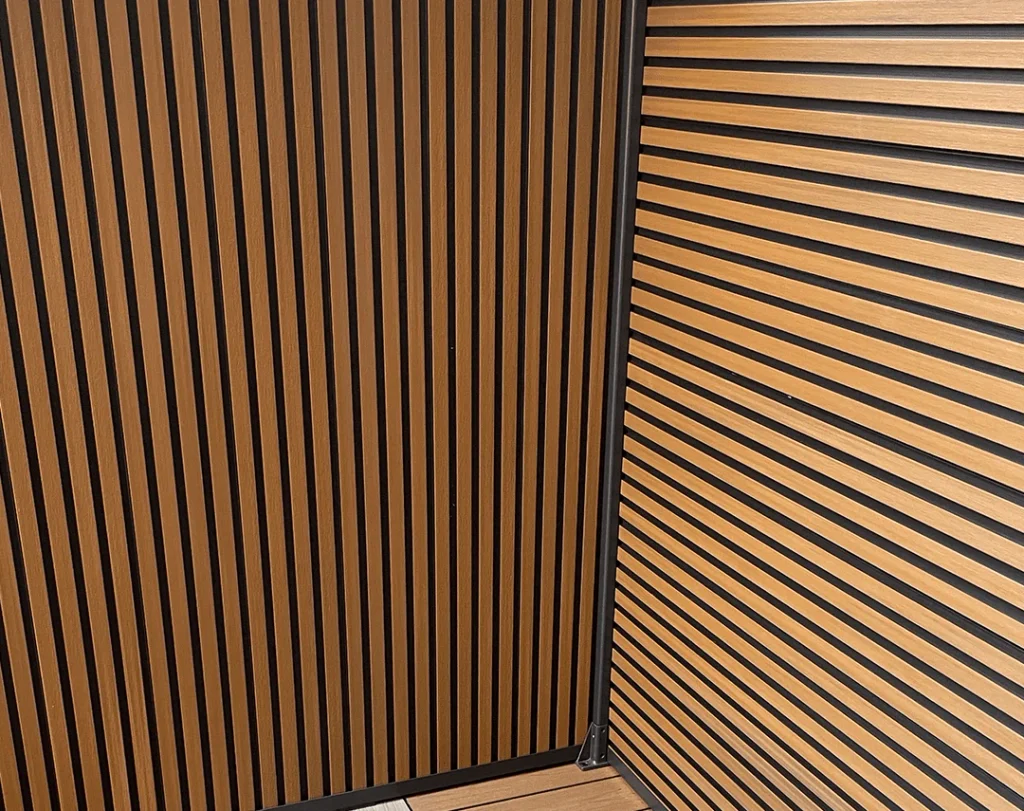

Vertical & Horizontal Fluted Fence Layouts

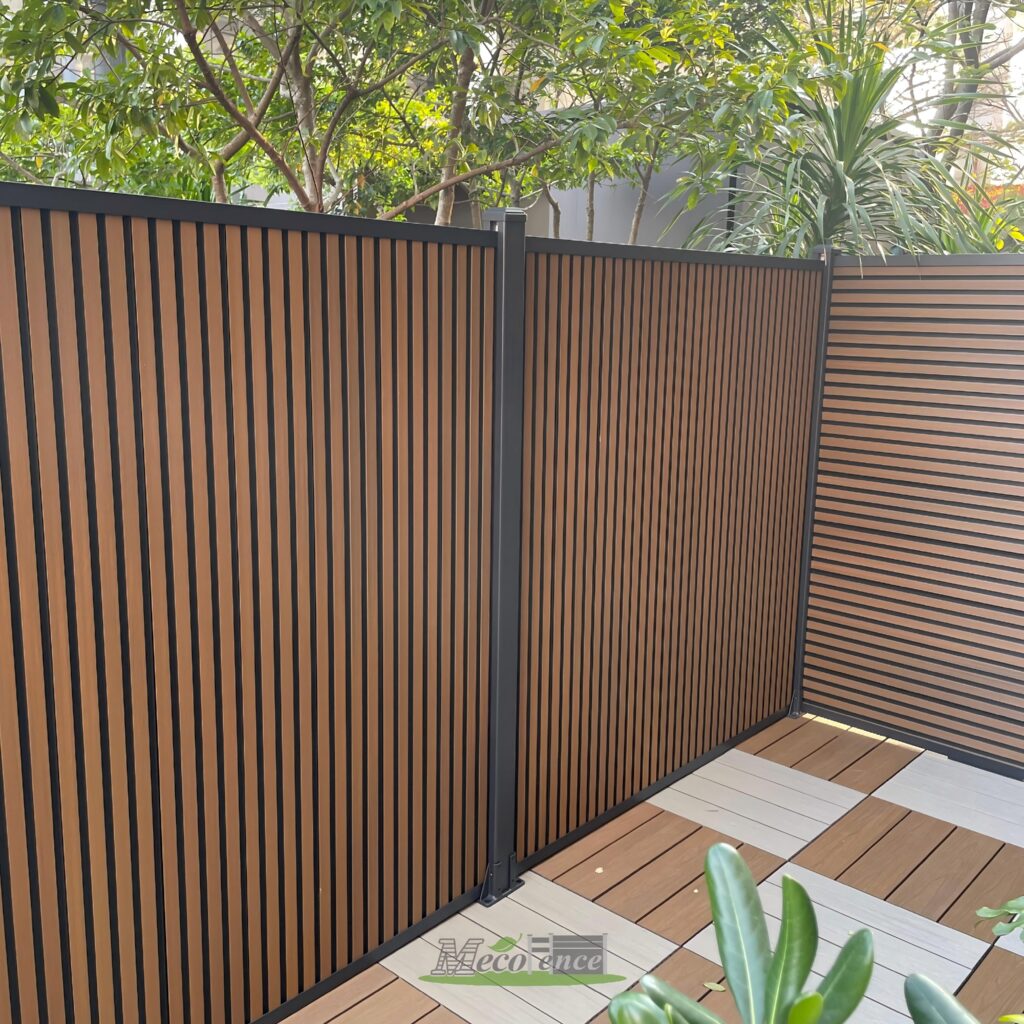

The system provides two layout options within the MecoFence Dual-Tone range. Vertical fluted fence panels and horizontal configurations use the same double-sided fluted infill, with orientation-specific rails and supporting components.
Horizontal
Horizontal infill orientation within the same system range

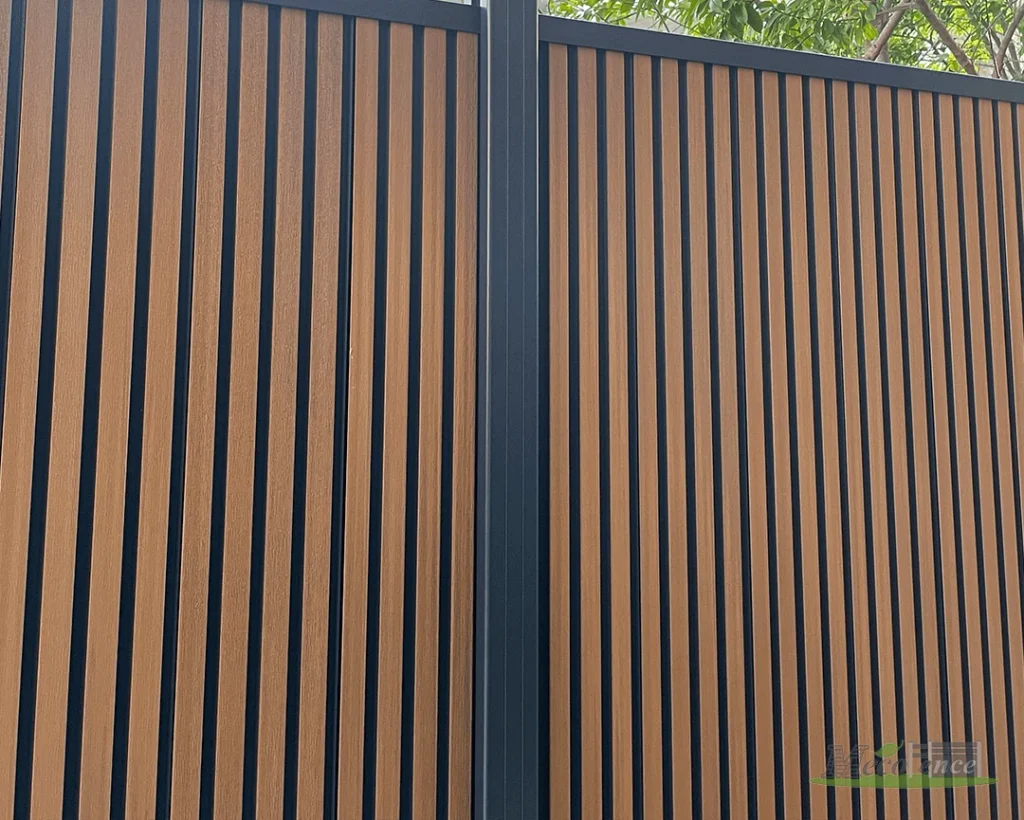

Vertical
Vertical infill orientation for the specified project elevation.
Colour & texture
8 Standard Dual-Tone Finishes
The standard finish range pairs wood-tone and neutral faces with black recessed grooves. Black + Black provides a single-colour option within the same fluted system. Specify the finish with the order configuration.
- Available colour finishes
- IPE + Black
- Walnut + Black
- Teak + Black
- White + Black
- Antique + Black
- Ashwood + Black
- Dark Grey + Black
- Black + Black
Custom colours are available on request, subject to sample approval.
Prefer contrasting grooves? Explore Single-Tone ↗

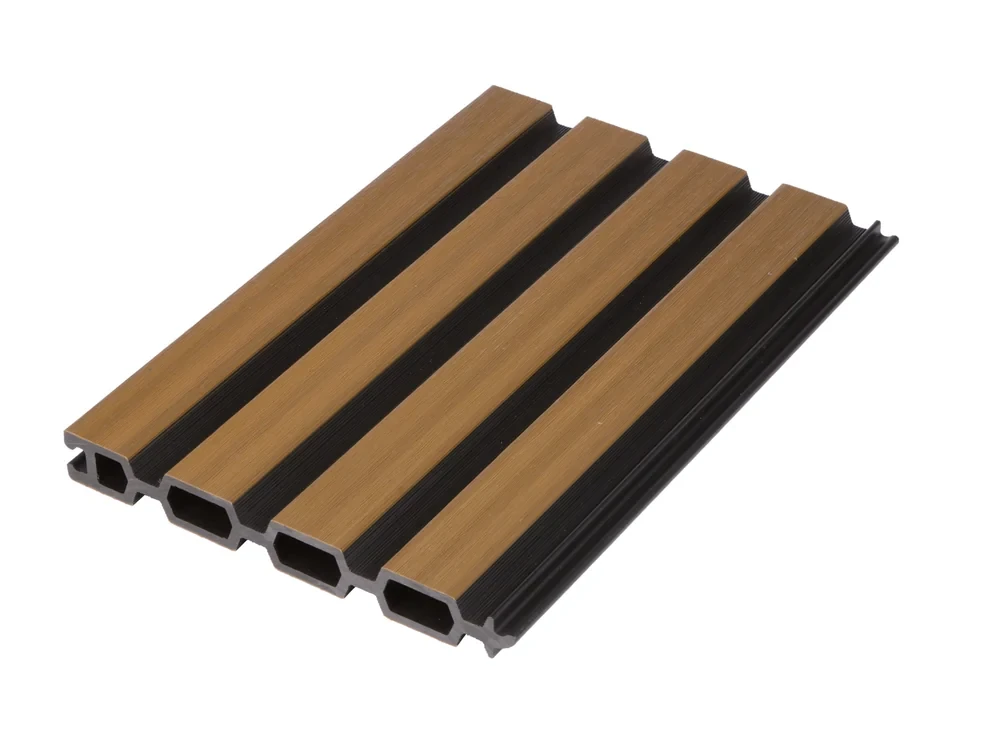

System component · Infill
Double-Sided Infill for the Fence System

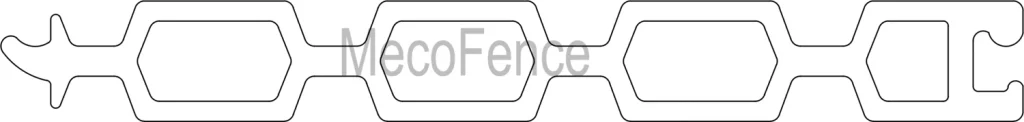

The fence panels use double-sided composite fence boards between the system posts and rails. Both board faces have a fluted finish, with recessed black grooves forming the slat appearance.
These are interlocking WPC infill boards, not separate solid-timber slats. The board, frame and fittings are specified together as a fence system.
At a glance
Details that help
you specify.
Start with the finish and panel size. We’ll help match the components to your order.
- System model
- MecoFence Dual-Tone S-CF 05
- Standard module
- 1,800 × 1,800 mm
- Layout options
- Vertical or horizontal; rail profile varies by layout
- Infill
- Double-sided fluted WPC boards, 204 × 24 mm, 1.76 m
- Boards per set
- 9 pcs; 195 mm exposed width per board
- Board outer layer
- 1 mm Surlyn co-extrusion layer
- Post
- MecoFence Post-N, 80 × 80 mm; 1.83 m for concrete configurations or 2.33 m for grass/soil configurations
- Rails
- 30 × 30 mm vertical; 38 × 28 mm horizontal; 1.72 m
- Fittings
- Post cap, side cover and L-fix brackets; mounting parts vary by configuration
- Colours
- 8 standard finishes; see the Dual-Tone palette
- Supply
- Configuration-specific fence component sets; OEM enquiries
- MOQ
- 100 sets
- Warranty
- 20 years residential / 15 years commercial, subject to written warranty terms
- Quality Control & Testing
- MecoFence’s in-house testing programme covers drying, bending strength, UV exposure, boiling, cooling and colour consistency checks. Confirm applicable test methods and inspection requirements for the specified configuration.
Confirm panel coverage, post spacing and the component list for your chosen configuration before ordering.
Boards to boundary
Fence System Components & Installation

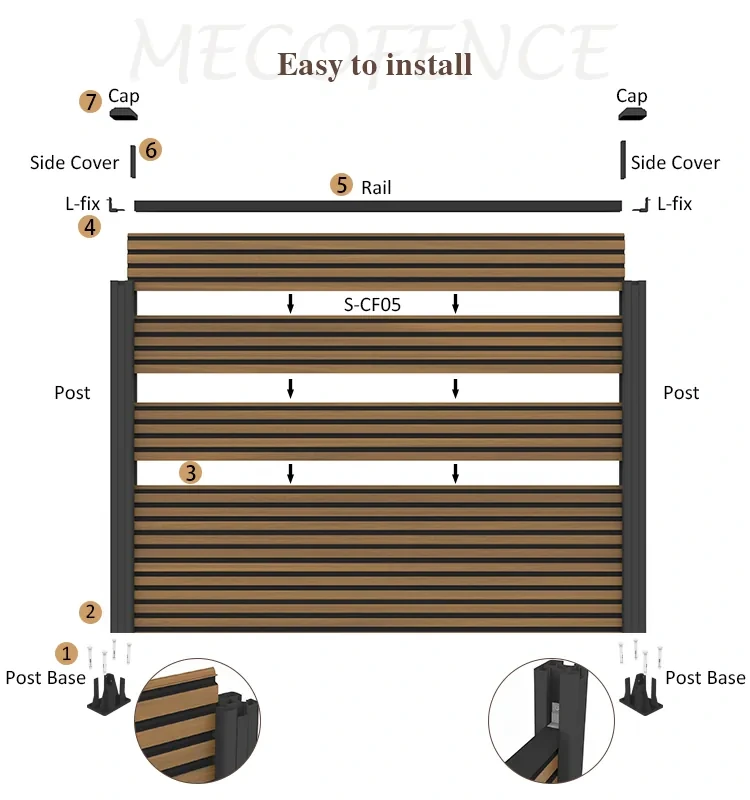

Horizontal assembly schematic. The image illustrates component relationships, not supply quantities; use the configuration schedule below.
Fence Kit Components & Configurations
The MecoFence Dual-Tone fence system combines infill boards, posts, rails and fittings in configuration-specific sets. The Post-N supply schedule uses the common components below plus the items listed for each layout and ground condition.
- 9 × S-CF 05 boards, 1.76 m each
- 1 × Post-N, 80 × 80 mm; length below
- 1 × post side cover, 26 × 14 mm, 1.83 m
- 1 × post cap, 85 × 85 × 25 mm
- 4 × L-fix brackets, 51 × 46 × 24 mm
Trade & project enquiries
Fence System Procurement FAQ
Is this a complete fence system or an individual board product?
This page covers the MecoFence Dual-Tone fence system: infill boards, posts, rails and configuration-specific fittings. The double-sided composite fence boards are one component of that system, not separate solid-wood slats. Their fluted faces create the slat appearance on both sides.
What is included in the vertical slat fence kit?
The Post-N component set includes nine infill boards, one post, a side cover, a post cap and four L-fix brackets, plus the rails and mounting parts listed for the selected configuration. One post per set is a supply quantity, not a complete freestanding-bay post count. End posts, corners and foundation fixings must be scheduled for the full fence run.
Can the composite fence panels be installed vertically and horizontally?
Yes. Both system layouts use the same infill board, with 30 × 30 mm rails for vertical layouts and 38 × 28 mm rails for horizontal layouts. The supplied component set is configuration-specific; refer to the fence kit schedule for the selected layout and ground condition.
Which posts can be used with this fence system?
The component schedule uses MecoFence Post-N, 80 × 80 mm. Powder-coated aluminium and WPC composite post options are listed separately. Confirm the post, rail and fitting combination for the selected system rather than treating the Post-N set as interchangeable with every post option.
How is the fence system priced, and what is the MOQ?
Request a quotation for the full fence configuration, not board-only pricing. Include the finish, vertical or horizontal layout, ground conditions, fence-run dimensions, quantity and delivery destination. The standard MOQ is 100 sets; the standard module is 1,800 × 1,800 mm. Packing and loading plans are confirmed with the quotation.
Can the fence system be customised for project or OEM orders?
Project and OEM enquiries are supported. Specify the required dimensions, finish and packaging requirements so the system configuration can be reviewed. Custom colours are subject to sample approval.
How are colour and warranty details confirmed?
Confirm colour and texture using a physical sample. The stated warranty periods are 20 years for residential use and 15 years for commercial use; coverage, exclusions and any colour-related terms follow the applicable written warranty.
Supply planning

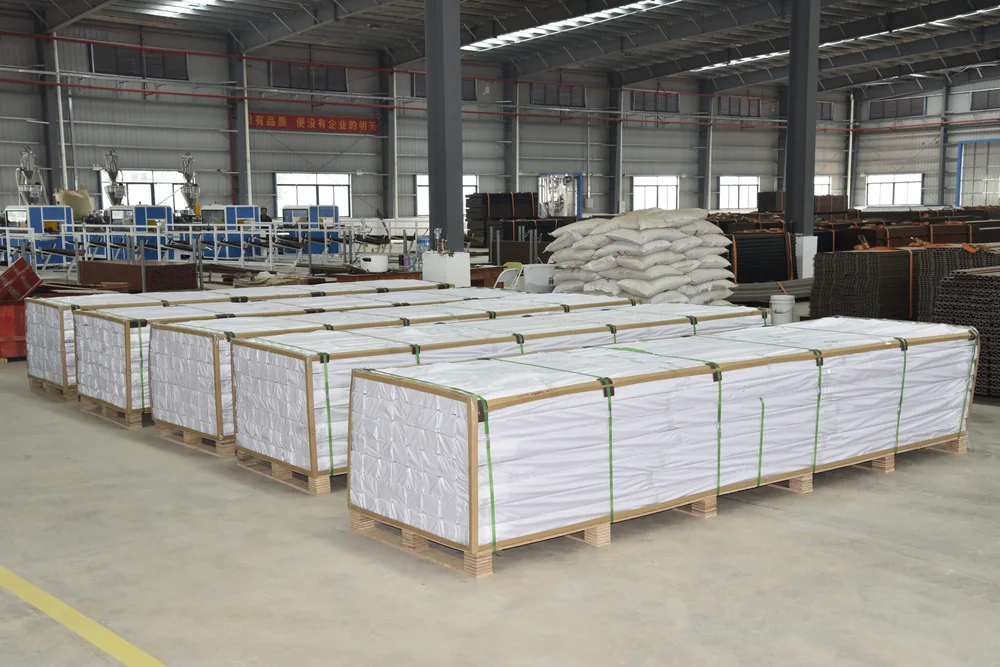

Packing & Delivery
Confirm packing requirements, component quantities and the delivery destination with the order configuration.
- Ports
- Shenzhen / Guangzhou
- Payment
- T/T, L/C
- Shipping
- Sea freight
- Quotation
- Confirm packing and delivery terms for the order
