MecoFence · Mid-trellis composite fence
Privacy below.
Air and light above.

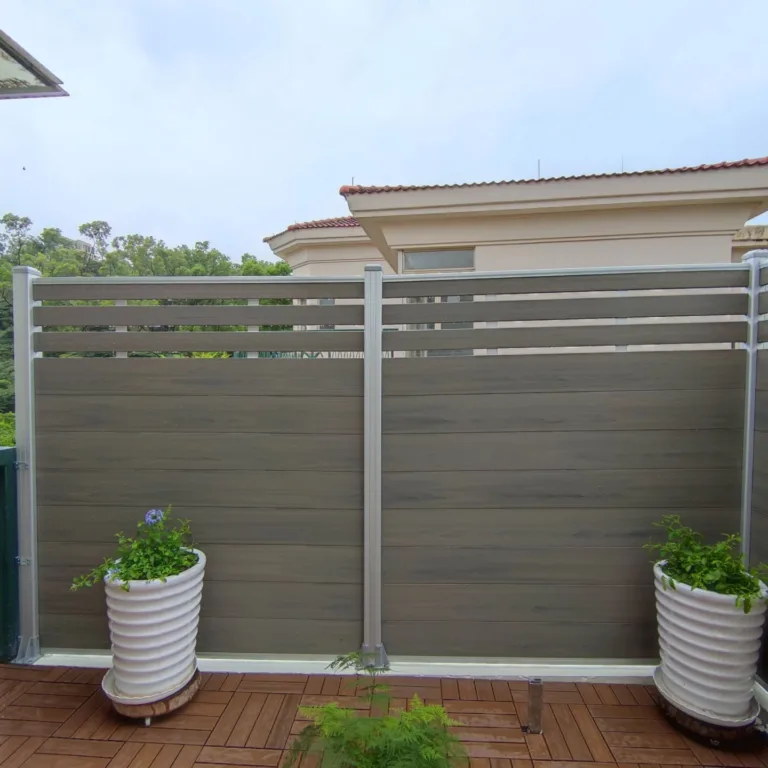

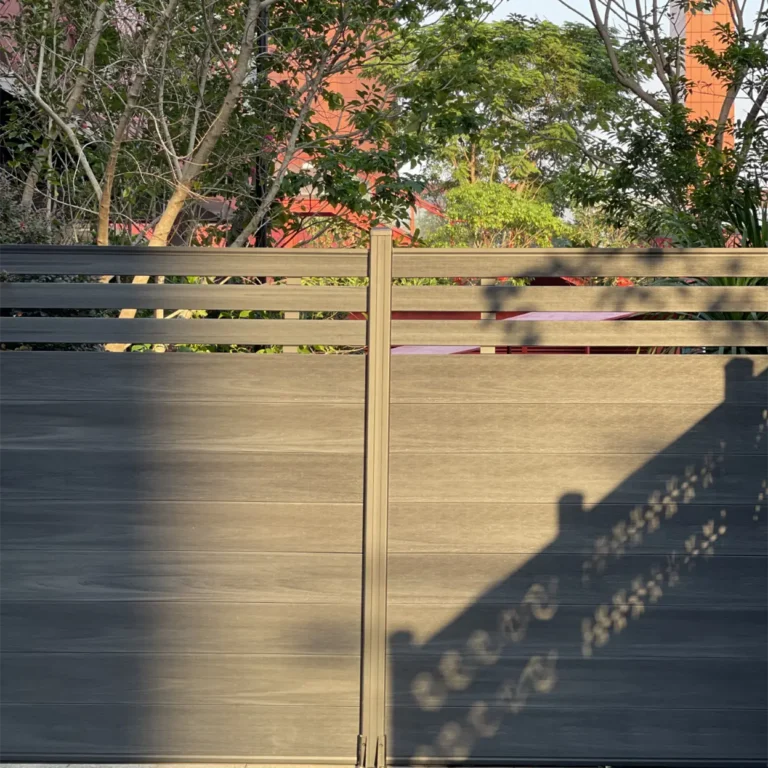

The MecoFence Mid-Trellis Composite Fence pairs a solid lower panel with an open horizontal trellis band. Co-extruded WPC boards and a colour-matched post-and-rail set define the boundary while the upper band stays visually open.
Two zones in one panel
Solid lower boards provide a screened section, while the upper slats retain an open visual line.
Matched board profiles
Wide and narrow boards share the same MecoFence co-extruded surface, so both zones weather evenly.
Spaced, supported slats
Factory spacers and inside covers hold every trellis gap consistent across the run.
On-site handling view of a dark grey board during fence assembly.
A balanced fence elevation
Open at the top.
Screened at the base.

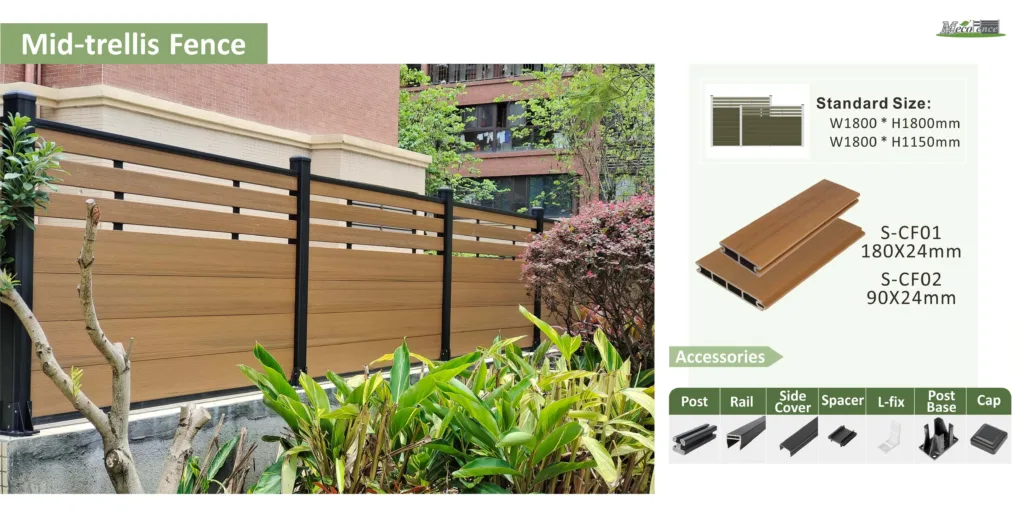

The upper band uses narrow CF02 boards with even gaps between them. The lower panel runs wide CF01 boards edge to edge, so one elevation delivers both a screened section and an open sightline.
Upper trellis
Three CF02 boards form the open band in the 1.8 m module.
Lower panel
Eight CF01 boards form the solid section of the same module.
At a glance
Details for a clear specification.
Use the standard module and component schedule as the starting point for a project take-off. MecoFence matches the components to each order.
- Board material
- Co-extruded wood-plastic composite (WPC)
- Layout
- Open horizontal trellis above a solid lower panel
- Board profiles
- CF01: 180 × 25 mm; CF02: 90 × 25 mm
- Standard module
- 1,800 × 1,800 mm; board length 1,760 mm
- Core components
- 80 × 80 mm post; 30 × 30 mm rails; side covers, cap, corner braces and spacers
- Colours
- Teak · Dark Grey · Ashwood · IPE · Antique · Walnut
- Supply options
- Custom post lengths, coordinated post-and-board supply and OEM enquiries
- Documentation
- Request applicable specifications, certificates and test reports
- MOQ
- 100 sets
- Warranty
- 20-Year Residential / 15-Year Commercial Warranty
- Certifications
- FSC · CE · ISO 9001 · SGS · REACH
Certificates: CE, ISO 9001, ISO 14001; Intertek test report available on request. Confirm spacer size and post fixing method for your layout before ordering.
Colour & texture
Six colour references.
The Mid-Trellis range is offered in six MecoFence colour references, from warm wood-inspired tones to neutral greys, subject to current production availability.
Standard colours, left to right: Teak, Dark Grey, Ashwood, IPE, Antique, Walnut.

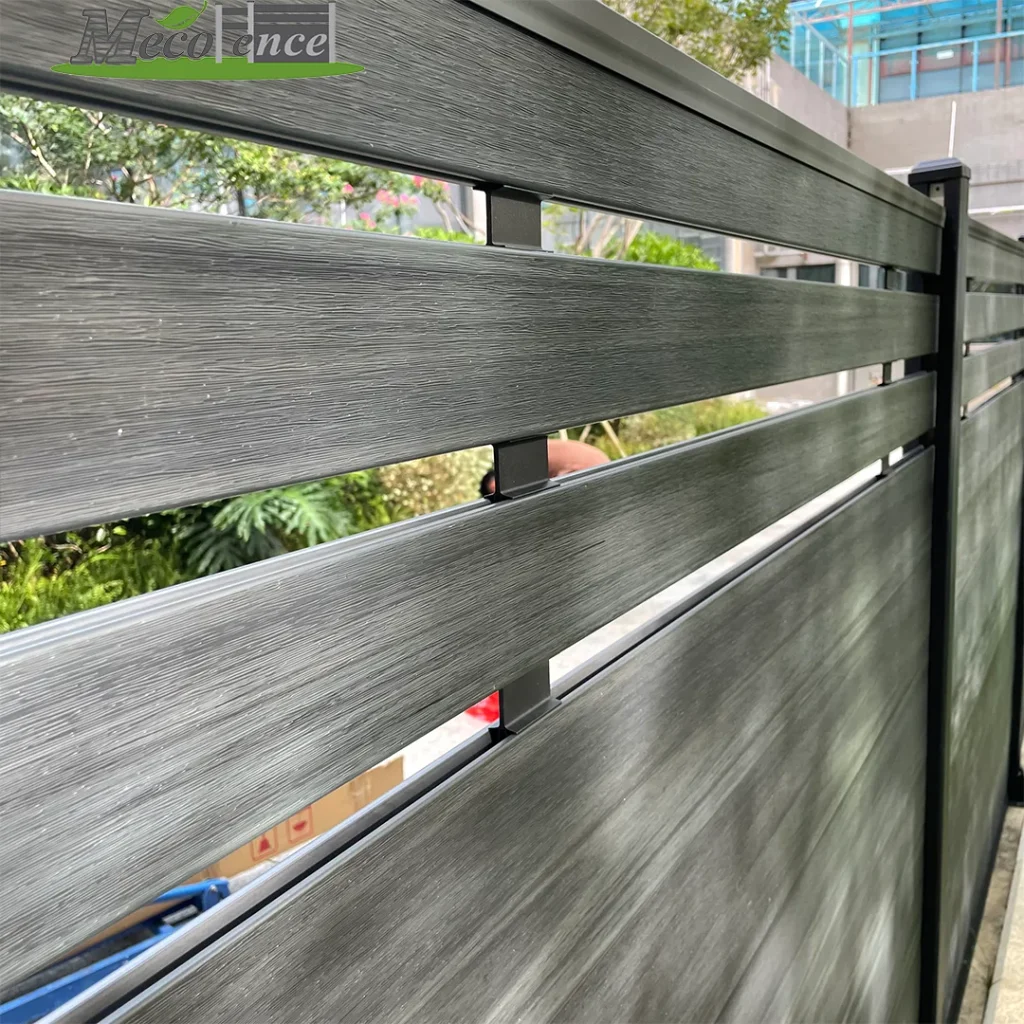

Close-up view of the board gaps and spacer detail.
Prefer a fully open trellis? Explore the Full Trellis fence ↗
Boards to boundary
Specify the complete module.

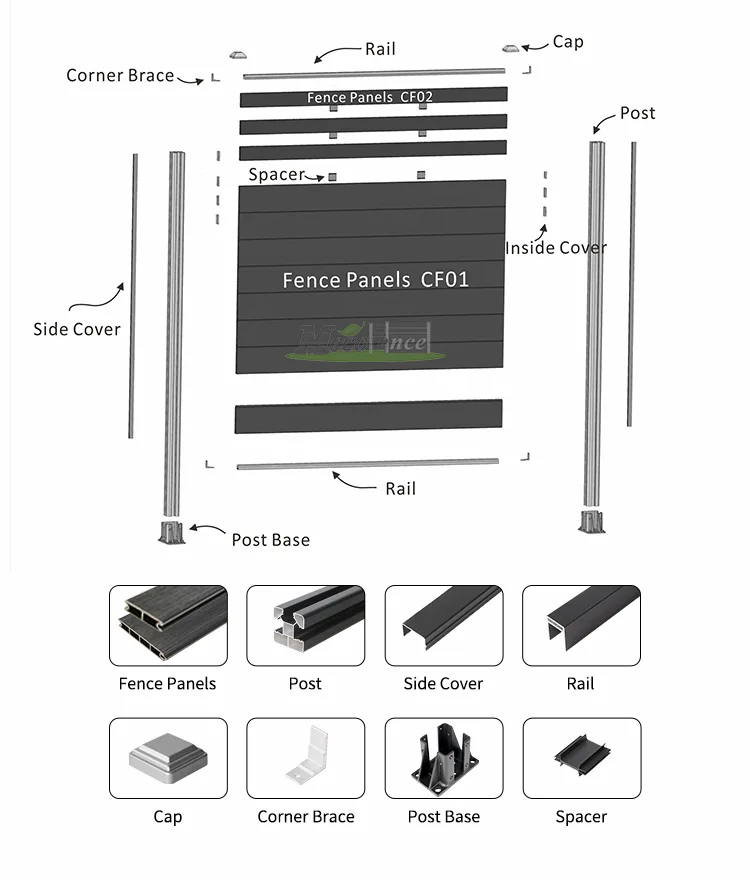

Each 1.8 m module combines the two board profiles with a post, rails, side covers and finishing pieces from one MecoFence production line. Six spacers and six inside covers set the open upper band shown in the exploded view. Confirm corners, end details, post bases and fixings for each fence run before ordering.
Each 1.8 m module ships as one complete set, so nothing is missing on site.
- CF01 wide boards · 8 pcs CF02 narrow boards · 3 pcs
- Post 80 × 80 mm · 1 pc Rails 30 × 30 mm · 2 pcs
- Inside covers · 6 pcs Spacers · 6 pcs
- Aluminium post cap · 1 pc Corner braces · 4 pcs
Component lengths: boards 1.76 m; post 2.3 m; side cover 1.8 m; rails 1.72 m. Confirm the spacer variant with the sales team before production.
Fence, gate, frontage
Same boards. Same spacing. Same finish.

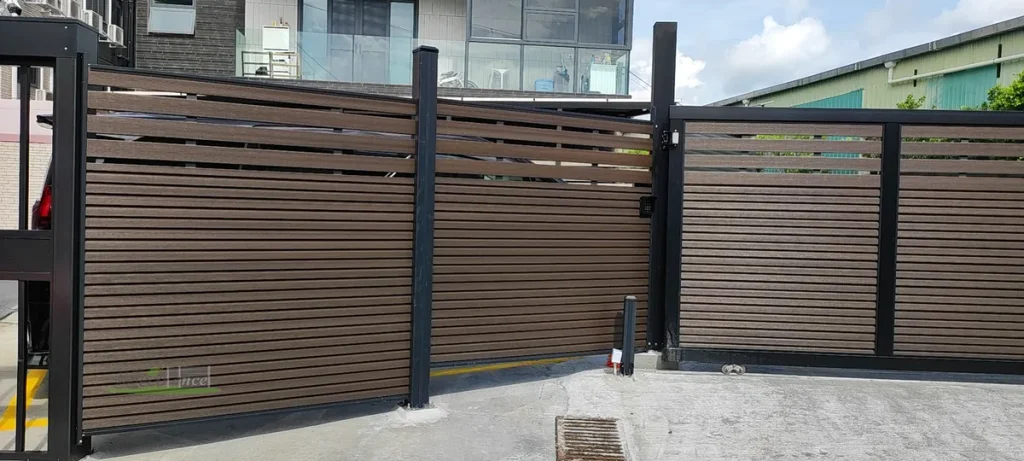

Walnut fence with a colour-matched slide gate at a driveway.

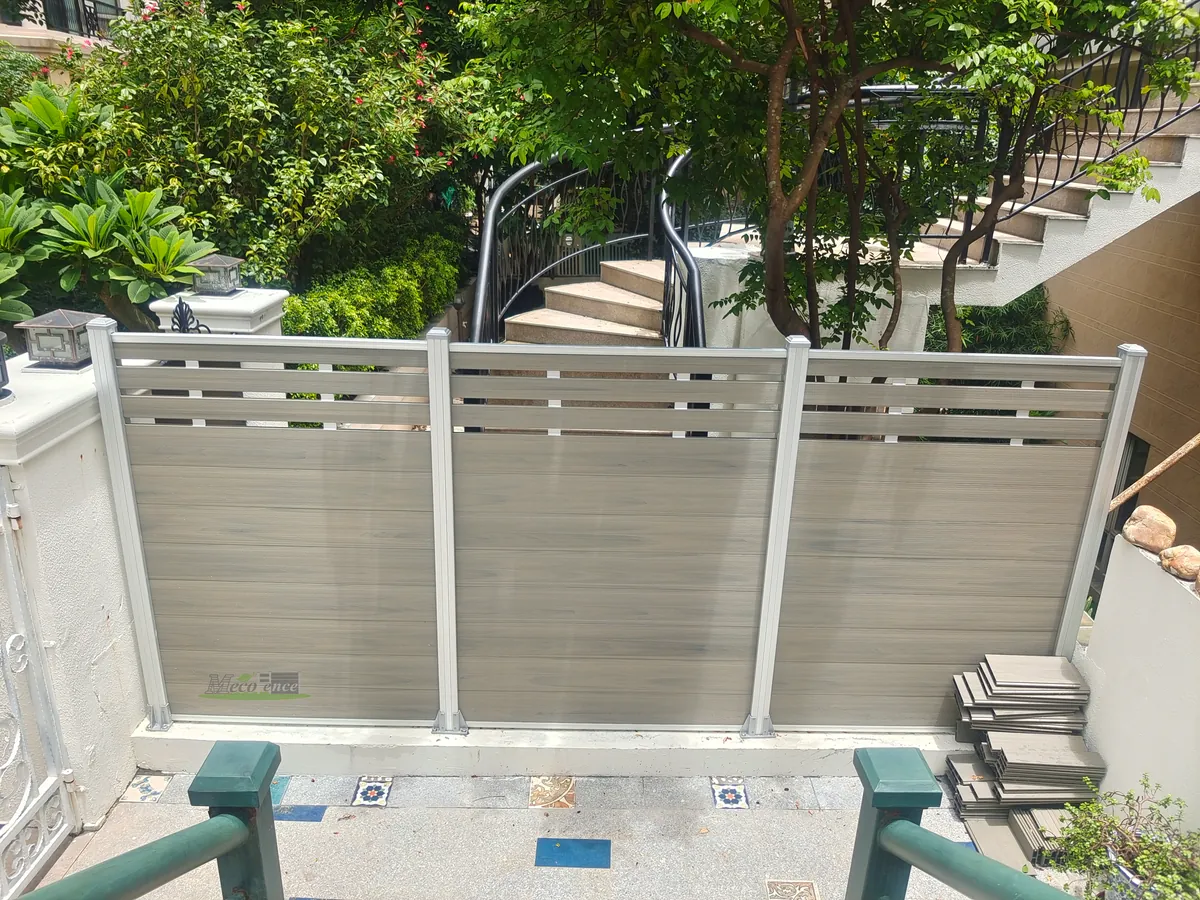

Ashwood panels with silver aluminium posts in a courtyard setting.

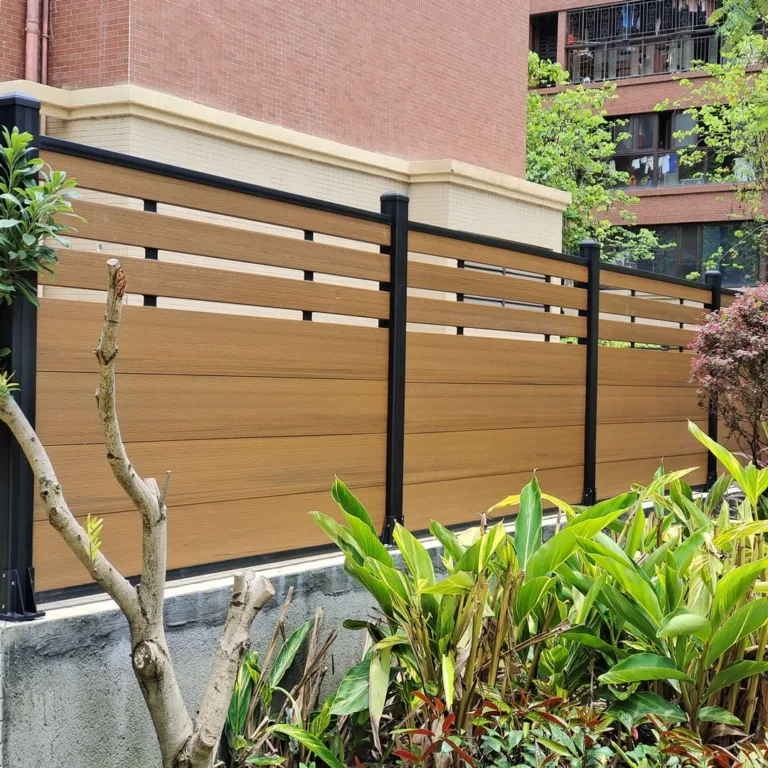

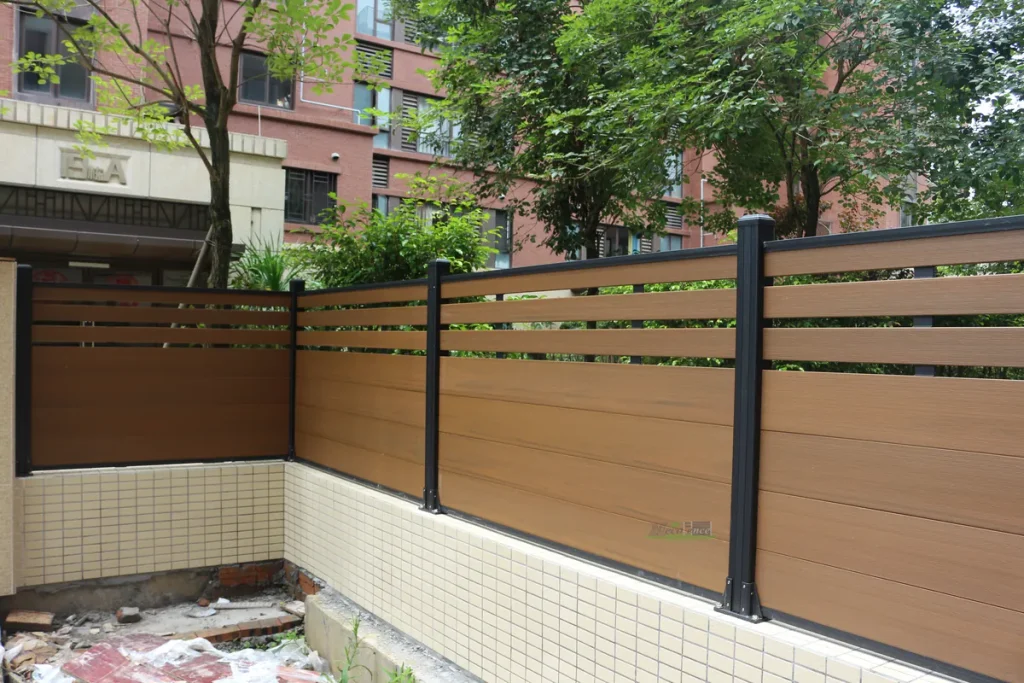

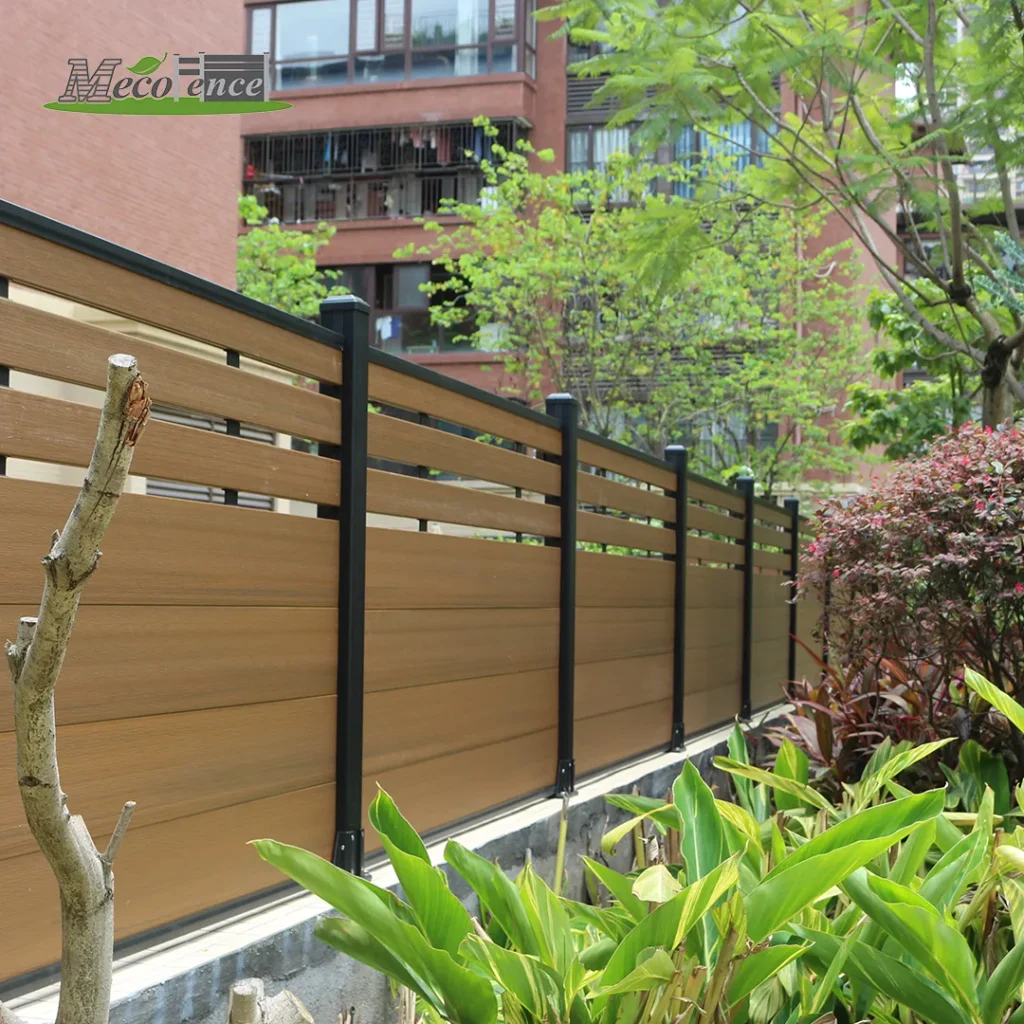

Teak panels on a corner boundary wall, black post option shown.
From sample to site
Three steps.
01 / SAMPLE
Get the sample.
35cm length Board and colour samples ship within days. Check the profile and finish in your own light.
02 / CONFIRM
Confirm the order.
We lock in panel size, spacer, colour and the full component list, so every set arrives complete.
03 / SHIP & INSTALL
Ship FOB. Guide included.
Assemble the boards and trims, following the installation guide for connections and clearances.
