MecoFence · Full-trellis series
See more.
Breathe more.
Maintain less.

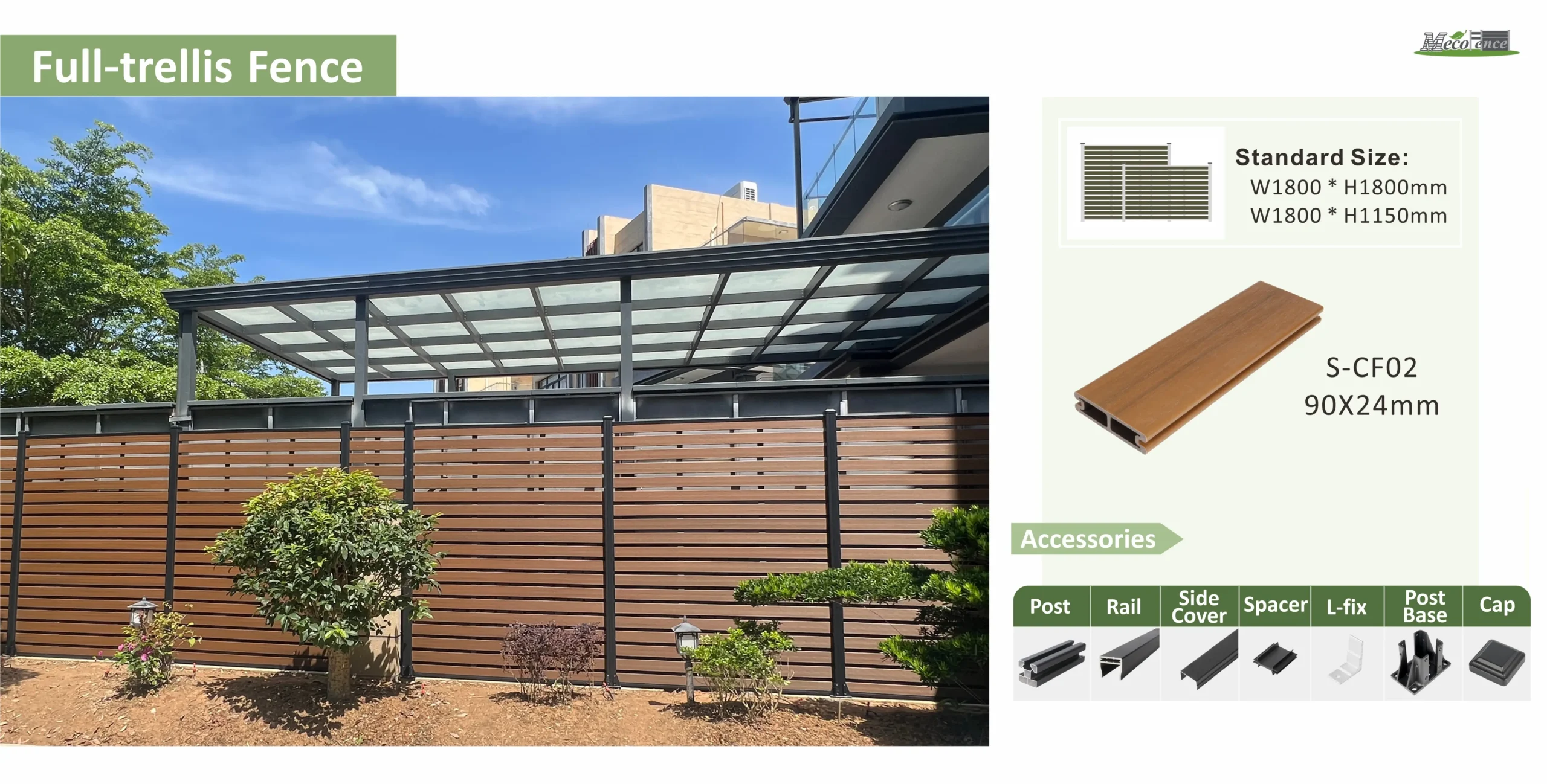

Slim 90 mm co-extruded boards, set in even horizontal lines. The Full-Trellis Fence opens your boundary to light and air, while an aluminium frame keeps every line straight for decades.
Exceptional openness
Uniform gaps frame the view instead of blocking it. Light passes, the garden stays connected.
Superior ventilation
Air moves through every row, so wind load drops and heat never builds up behind the fence.
Co-extruded shield
A fused outer layer locks out UV, stains and moisture. No painting, no sealing, no rot.

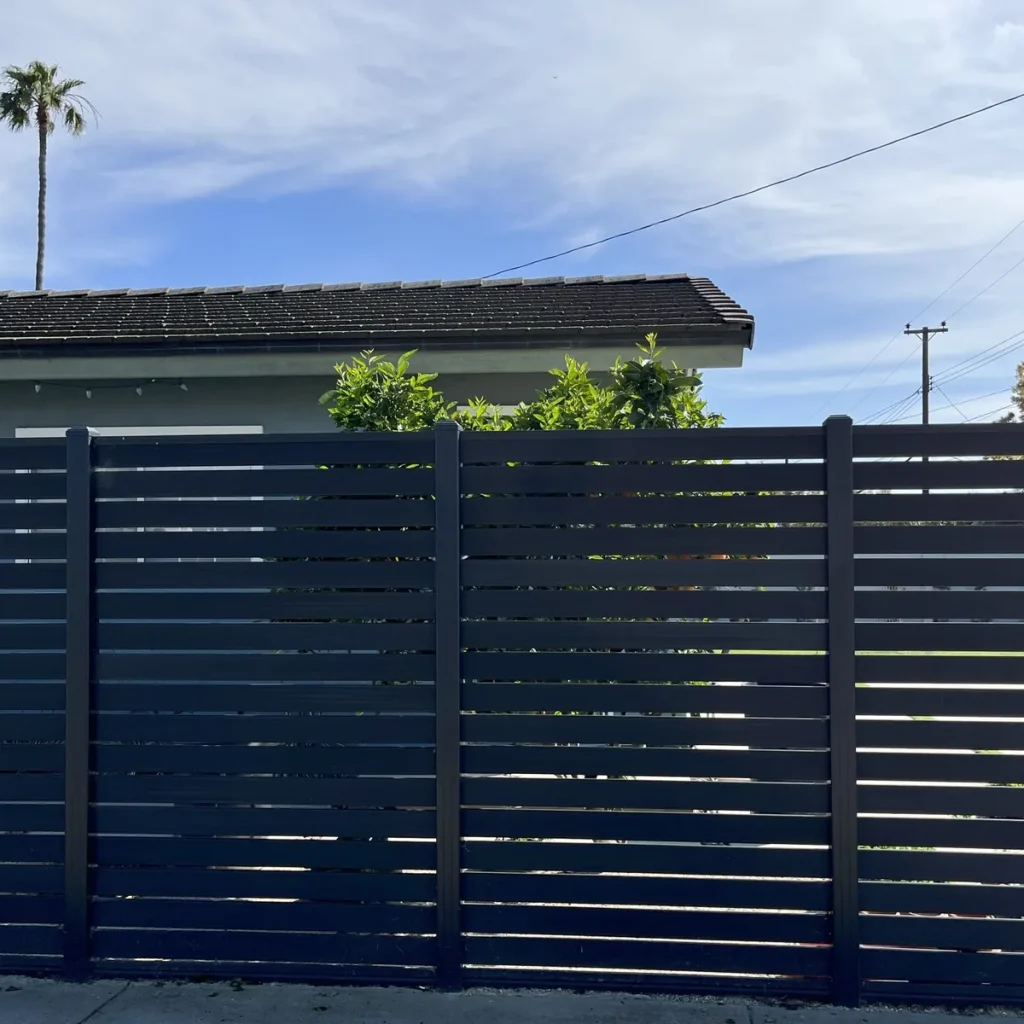

Even spacing, panel after panel. Dark Grey, 1.8 m high.
Choose your layout
Two spacers.
One system.
The spacer sets the gap between boards. Pick the balance of privacy and view that fits your space.
15 mm spacer
Airflow with privacy
Property lines, side yards and pool enclosures.
30 mmspacer
Airflow with a view
Front gardens, terraces and landscape edges.
At a glance
Details that help
you specify.
Start with the panel size and colour. We match posts, rails and fixings to your layout.
- Board
- Co-extruded WPC, hollow twin-chamber profile
- Board profile
- 90 mm wide × 25 mm thick × 1,760 mm long
- Panel size
- 1,760 mm W × 1,800 mm H · 14 boards per panel
- Post
- Aluminium, 80 × 80 mm × 2,300 mm, with 85 × 85 mm cap
- Rails
- Aluminium, 30 × 30 mm × 1,720 mm, top and bottom
- Spacer
- 15 mm or 30 mm gap, 26 pcs per panel
- Frame
- Oxidation-treated aluminium posts, rails and covers
- MOQ
- 100 sets
- Supply options
- OEM & ODM, custom sizes, pallet or kit packing
Certificates: CE, ISO 9001, ISO 14001; Intertek test report available on request. Confirm spacer size and post fixing method for your layout before ordering.
Colour & texture
A quieter colour palette.
From warm Teak to modern Dark Grey, every colour is co-extruded through the surface, not painted on. Boards and aluminium frame can be specified separately.
Standard colours, left to right: Teak, Dark Grey, Ashwood, IPE, Antique, Walnut.
Prefer contrasting grooves? Explore Dual-Tone ↗

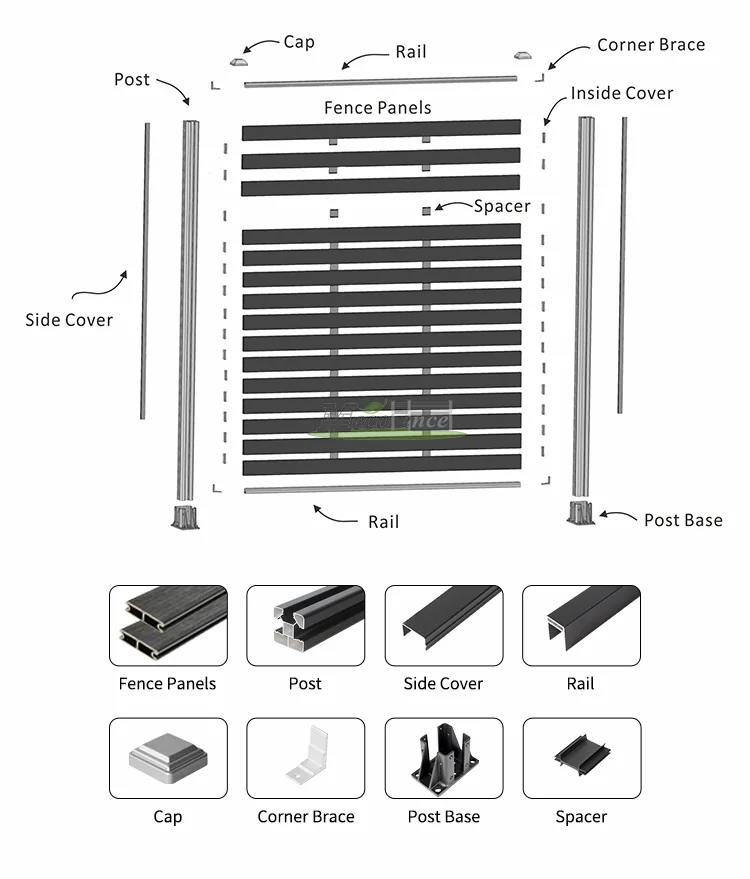

Boards to boundary
Everything in one panel set.
Boards, posts and finishing pieces are specified around your fence run. Include corners, changes in level and gate openings when requesting a quotation.
Boards slide into pre-spaced rails. Each set ships complete, so nothing is missing on site.
- 14 WPC boards 1 aluminium post + cap
- 2 rails, 30 × 30 mm 26 spacers
- Side & inside covers Corner braces & L-fix
Solar post-cap light
Wire-free night lighting, weather-proof. 98 × 98 mm, black.
Cast-aluminium post base
Surface-mount on concrete. Post length reduces by 500 mm.
Angle connector
Any corner, not just 90°.
Mid-rail
Extra rigidity for tall panels or windy sites.
Fence, gate, frontage
Same boards. Same spacing. Same finish.

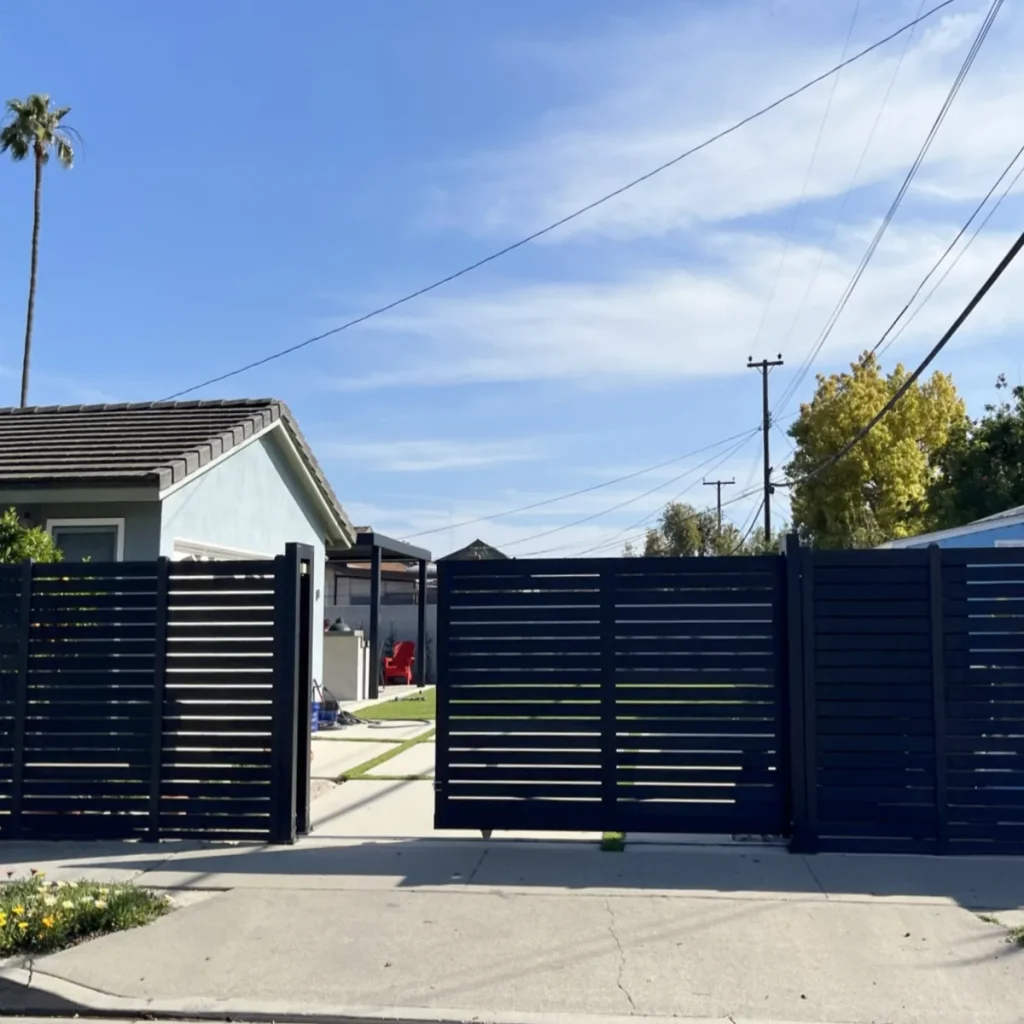

Slide Gate, matched board for board.

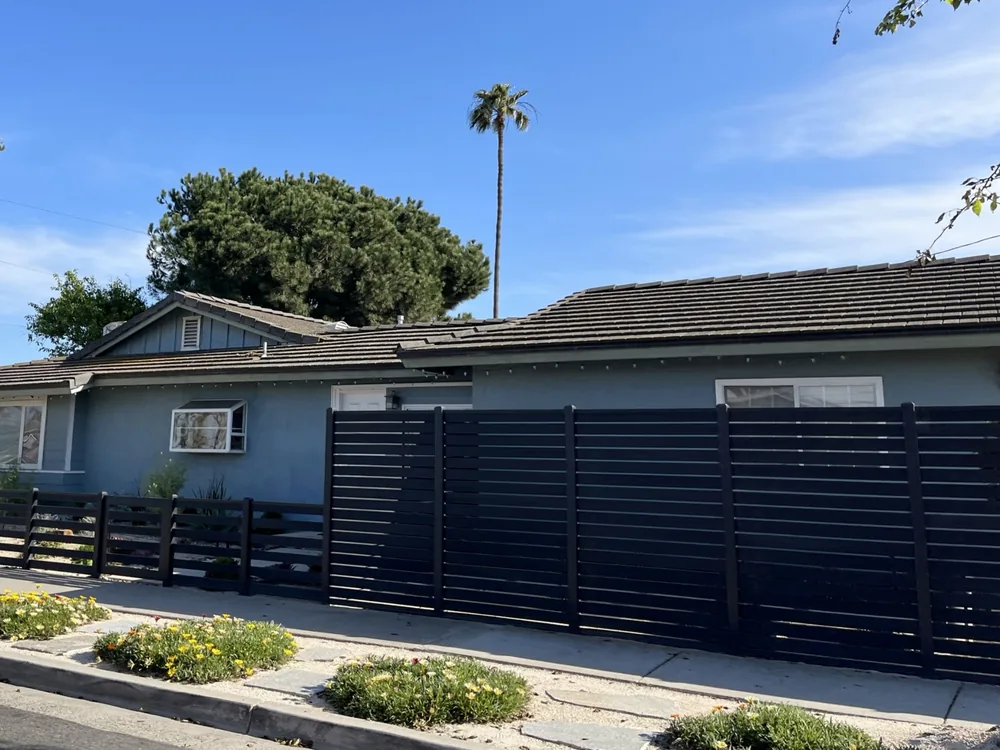

Full-height run stepping down to a low front section.
From sample to site
Three steps. No surprises.
01 / SAMPLE
Get the sample.
35cm length Board and colour samples ship within days. Check the profile and finish in your own light.
02 / CONFIRM
Confirm the order.
We lock in panel size, spacer, colour and the full component list, so every set arrives complete.
03 / SHIP & INSTALL
Ship FOB. Guide included.
Assemble the boards and trims, following the installation guide for connections and clearances.
