MecoFence · Cylindrical post privacy fence
The privacy panel.
A round post.
The MecoFence Mid-Trellis Composite Fence pairs a solid lower panel with an open horizontal trellis band. Co-extruded WPC boards and a colour-matched post-and-rail set define the boundary while the upper band stays visually open.

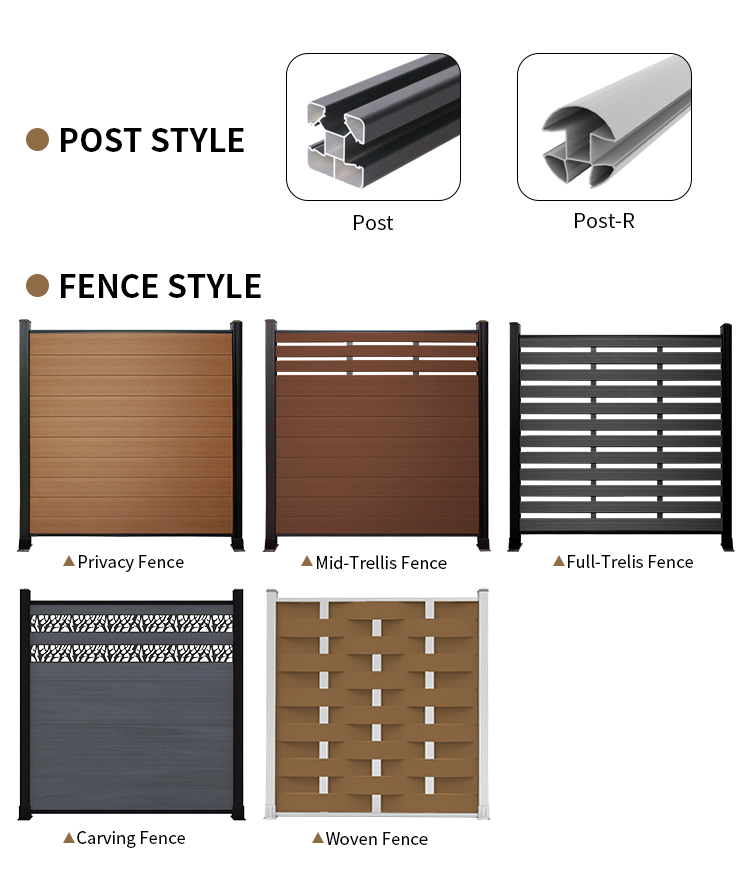

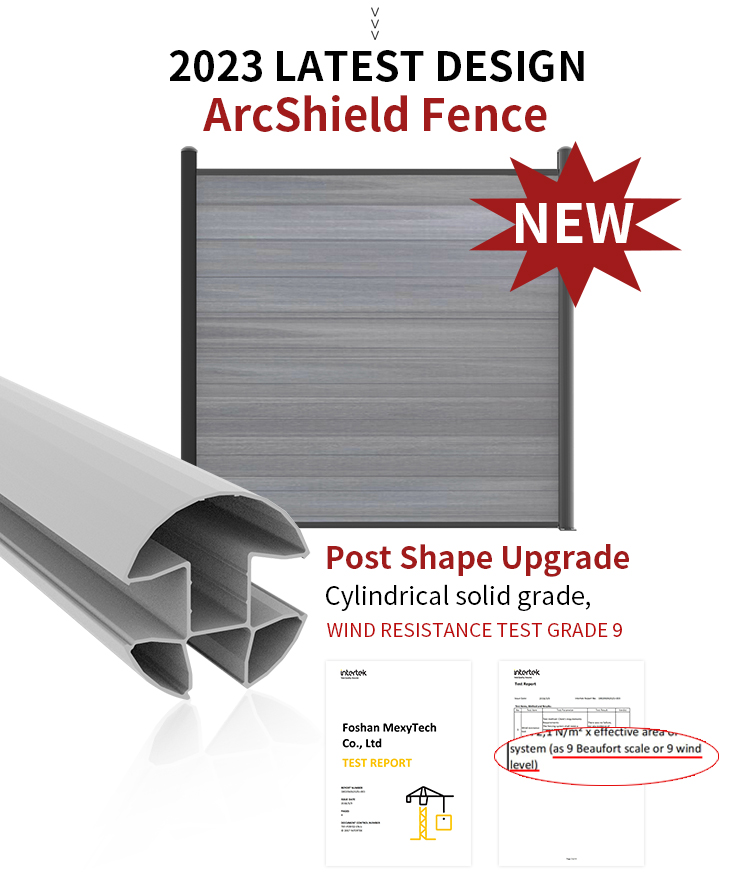

Post-R cylindrical post
An 80 × 80 mm round composite post with no corners or exposed edges, supplied at 2.3 m with a matching side cover and aluminium cap.
Dedicated SP-CF04 boards
176 × 19 mm co-extruded WPC privacy boards, ten per set, profiled to seat in the Post-R channel.
Horizontal installation
Boards are stacked horizontally between two 30 × 30 mm R-Rails and locked with the post side cover.

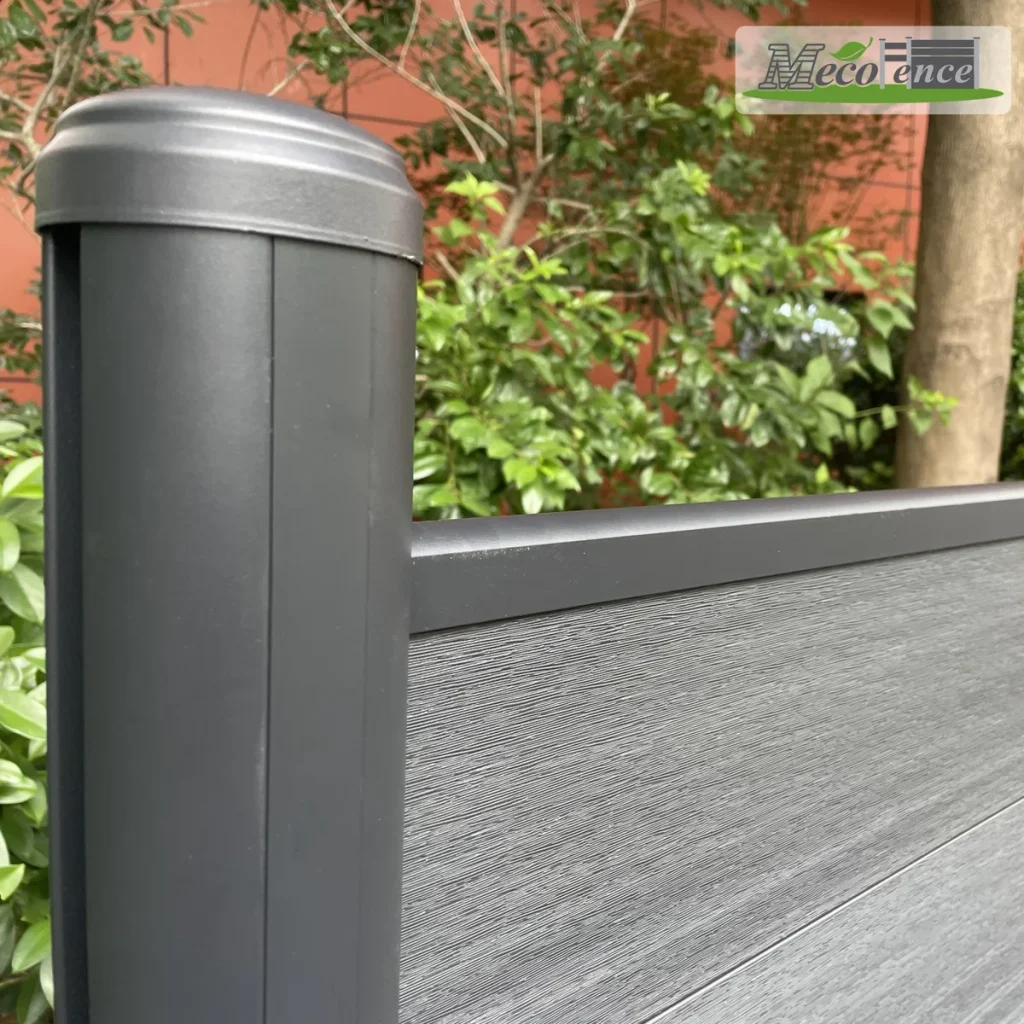

Post-R cap and rail-to-board connection.

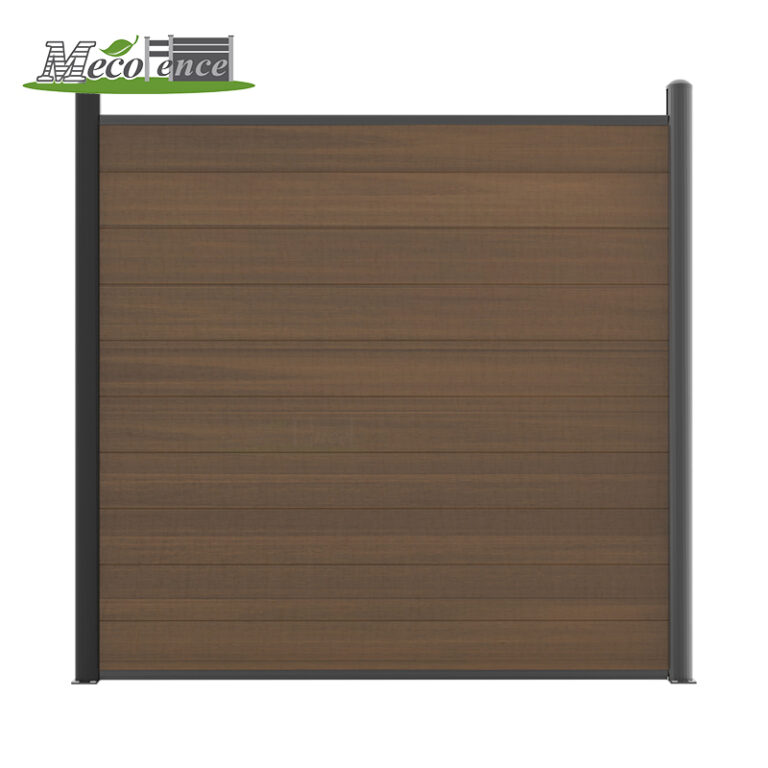

A balanced fence elevation
One post profile.
One dedicated board.
The round post changes the board channel, so ArcShield uses its own board, rail and side-cover set. Specify all components from this range together; boards from other MecoFence fences do not fit the Post-R post, and SP-CF04 boards do not fit square MecoFence posts.
Same privacy design
Horizontal boards and a 1.8 × 1.8 m module, in line with the 6ft Black Privacy Composite Fence.
Different post and board set
Post-R 80 × 80 mm round post, SP-CF04 176 × 19 mm boards, 30 × 30 mm R-Rails and a 26 × 14 mm side cover.
At a glance
Details for a clear specification.
Use the standard module and component schedule as the starting point for a project take-off. MecoFence matches the components to each order.
- Product model
- S-CF 01, privacy design
- Board
- WPC panel SP-CF04, 176 × 19 mm, 1.76 m, 10 pcs per set
- Post
- Post-R cylindrical composite post, 80 × 80 mm, 2.3 m, 1 pc per set
- Rails
- R-Rails 30 × 30 mm, 1.72 m, 2 pcs per set
- Post side cover
- Side cover R, 26 × 14 mm, 1.8 m, 1 pc per set
- Cap & fixings
- Aluminium post cap 85 × 85 × 33 mm; 4 L-fix brackets 51 × 46 × 24 mm
- Standard module
- 1,800 × 1,800 mm (6 × 6 ft)
- Installation
- Horizontal only
- Compatibility
- Boards, rails and side cover are dedicated to Post-R; not interchangeable with other MecoFence fences
- Optional base
- Steel post base 120 × 120 × 120 mm for concrete surfaces; post length reduced by 500 mm
- MOQ
- 100 sets
- Warranty
- 20-Year Residential / 15-Year Commercial Warranty
- Quality Control & Testing
- MecoFence’s in-house testing programme covers drying, bending strength, UV exposure, boiling, cooling and colour consistency checks. Confirm applicable test methods and inspection requirements for the specified configuration.
Certificates: CE, ISO 9001, ISO 14001; Intertek test report available on request. Confirm spacer size and post fixing method for your layout before ordering.

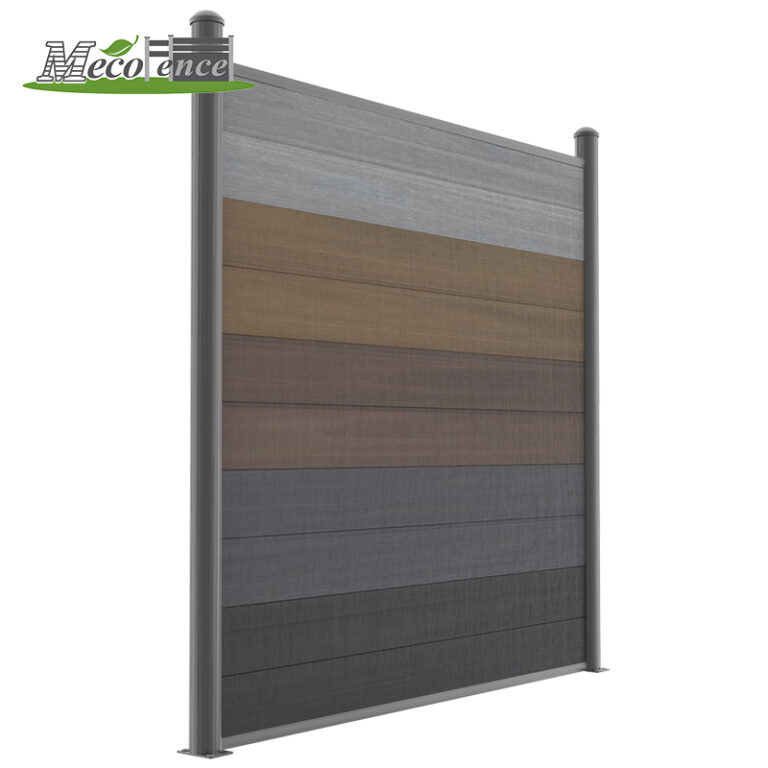

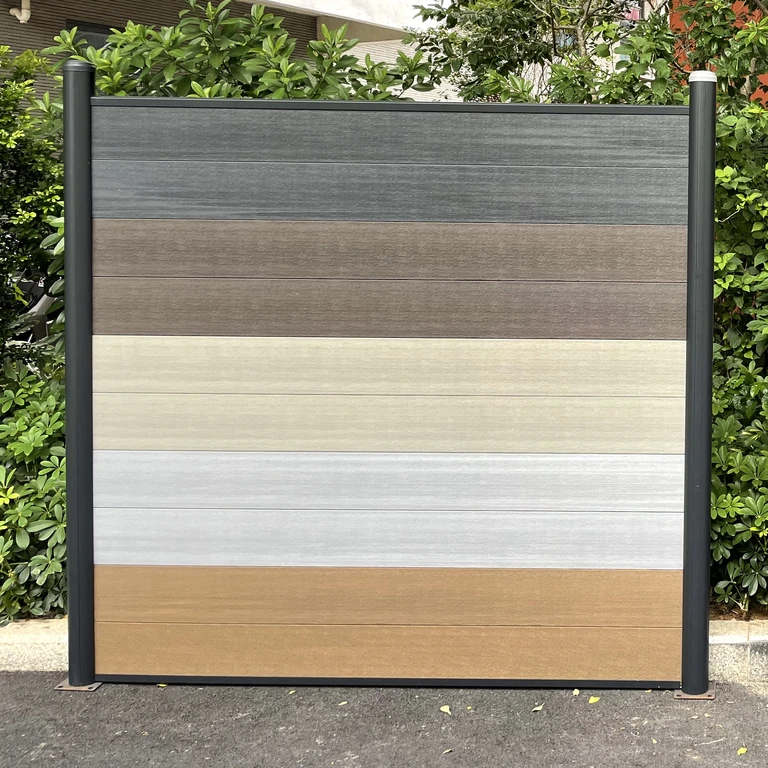

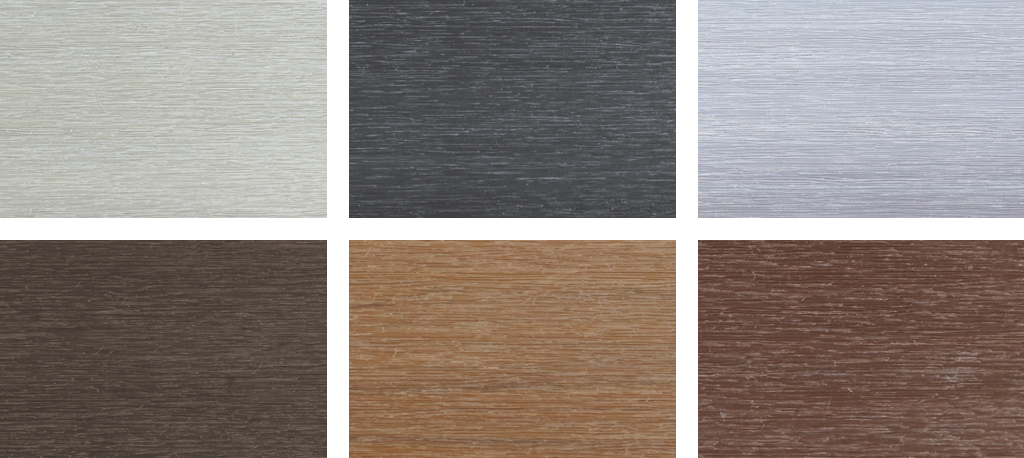

Colour & texture
Six colour references.
ArcShield boards, posts and side covers are supplied in the MecoFence privacy fence colour range. Post and cap colour are matched to the board at order stage; confirm the final finish against a physical sample before production.
Colour availability and component matching are confirmed during quotation.
View the WPC privacy fence range ↗
Boards to boundary
Specify the complete module.

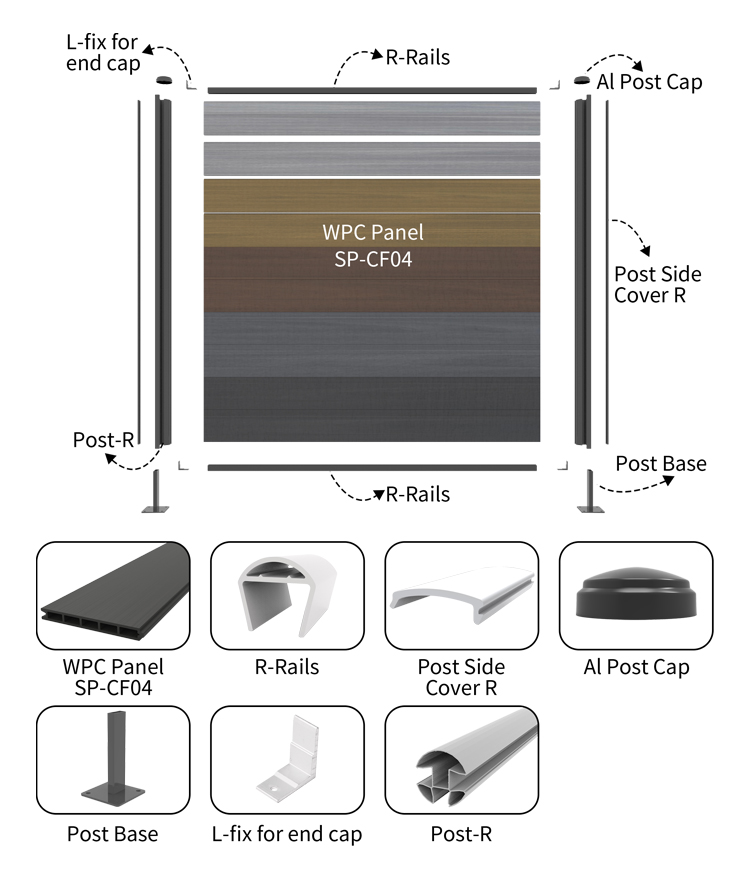

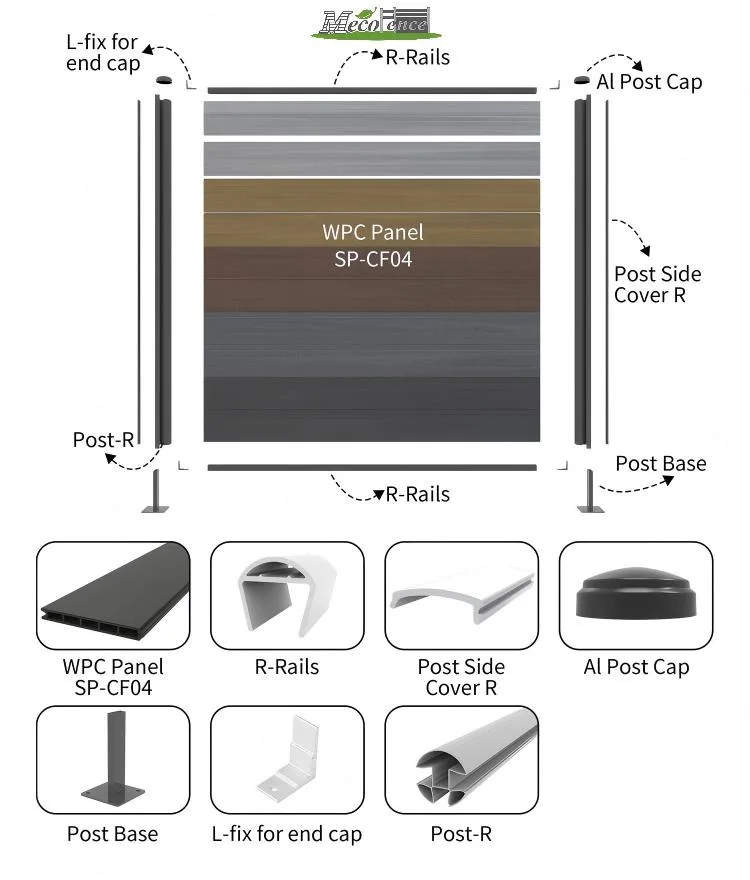

Every set contains the dedicated Post-R post, boards, rails, side cover and fixings. Order sets as a complete system; add end posts, corners, changes in level and gate openings when requesting a quotation.
- 10 × SP-CF04 WPC boards, 176 × 19 mm
- 1 × Post-R cylindrical post, 80 × 80 mm
- 2 × R-Rails, 30 × 30 mm
- 1 × post side cover R, 26 × 14 mm
- 1 × aluminium post cap, 85 × 85 × 33 mm
- 4 × L-fix brackets, 51 × 46 × 24 mm
Component quantities are confirmed against the fence run, corners, changes in level and access requirements. The steel post base is an optional fitting for concrete surface installation.
From sample to site
Three steps.
01 / SAMPLE
Get the sample.
35cm length Board and colour samples ship within days. Check the profile and finish in your own light.
02 / CONFIRM
Confirm the order.
We lock in panel size, spacer, colour and the full component list, so every set arrives complete.
03 / SHIP & INSTALL
Ship FOB. Guide included.
Assemble the boards and trims, following the installation guide for connections and clearances.
