MecoFence · Woven Composite Fence
Woven design.
Wood-grain character.

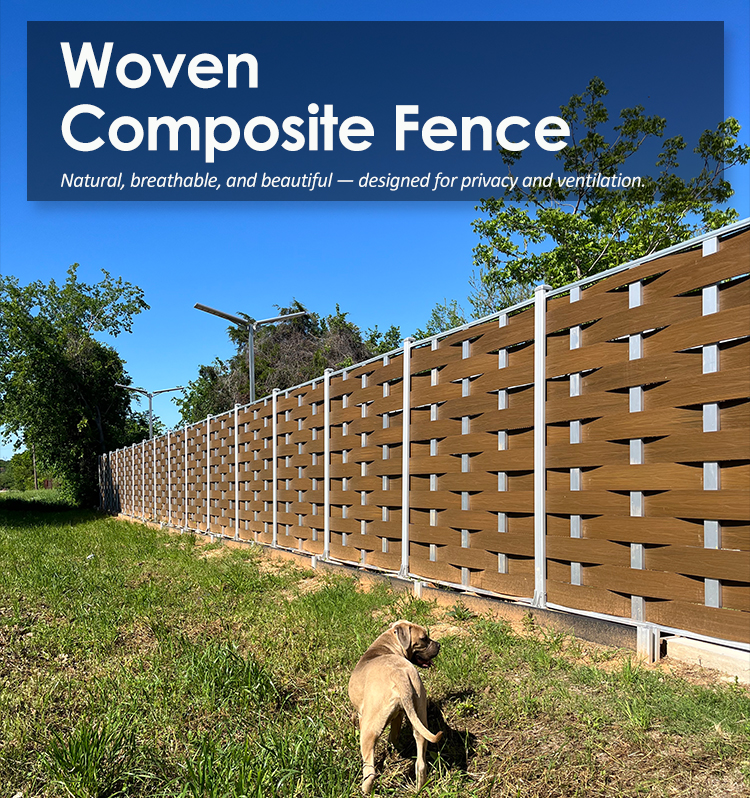

MecoFence Woven Composite Fence combines flexible wood-plastic composite (WPC) boards with an aluminium frame. The woven design helps screen views while allowing air to pass through, defining boundaries in residential developments, commercial landscapes and shared outdoor spaces.

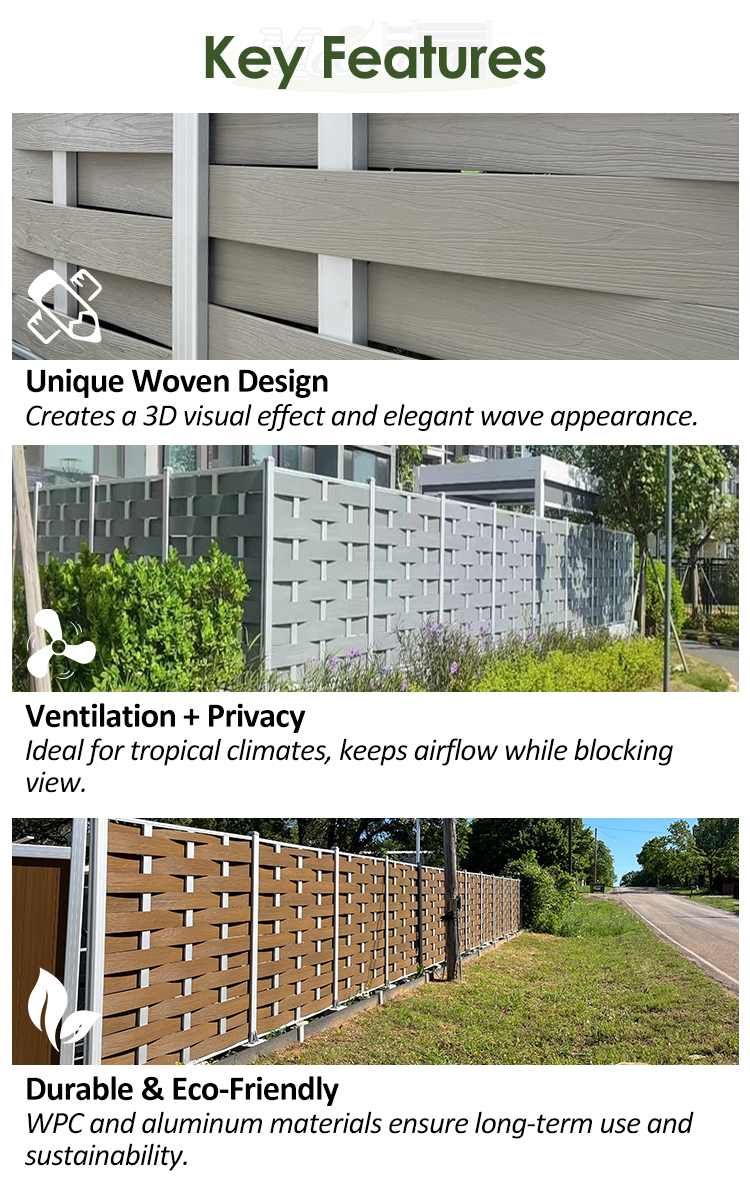

Distinctive woven texture

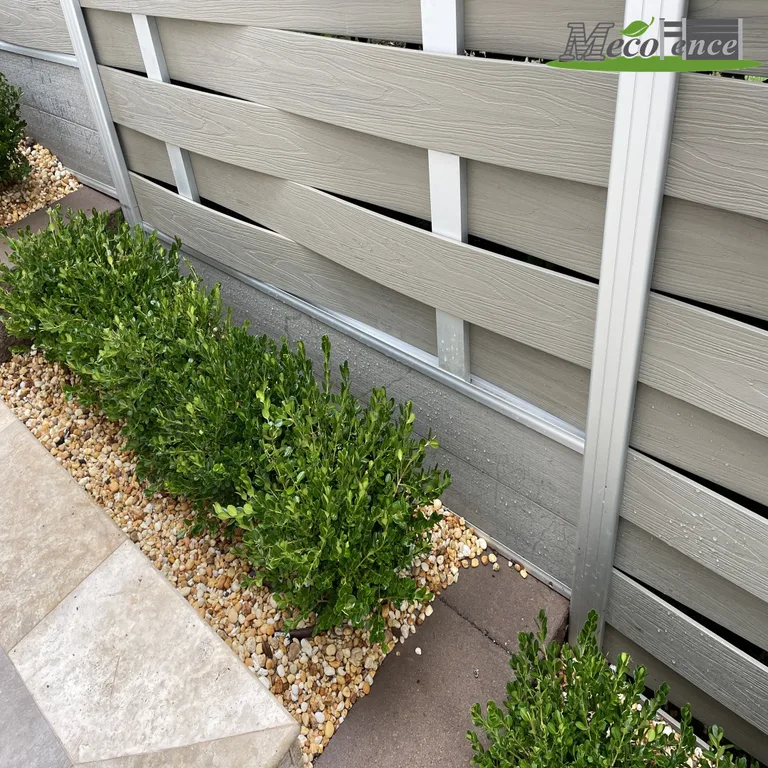

Boards curve around vertical aluminium supports, creating a layered pattern with visible depth.

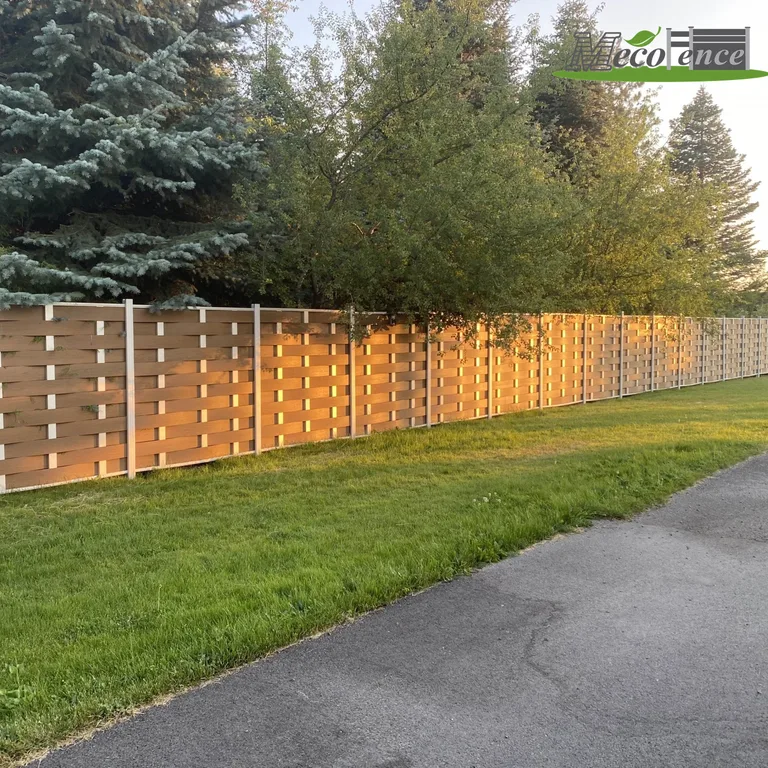

Airflow through the weave
Gaps between the woven boards allow air to pass through while helping screen views.
Coordinated fence components
Composite boards, aluminium posts and matching rails form a coordinated fencing system.

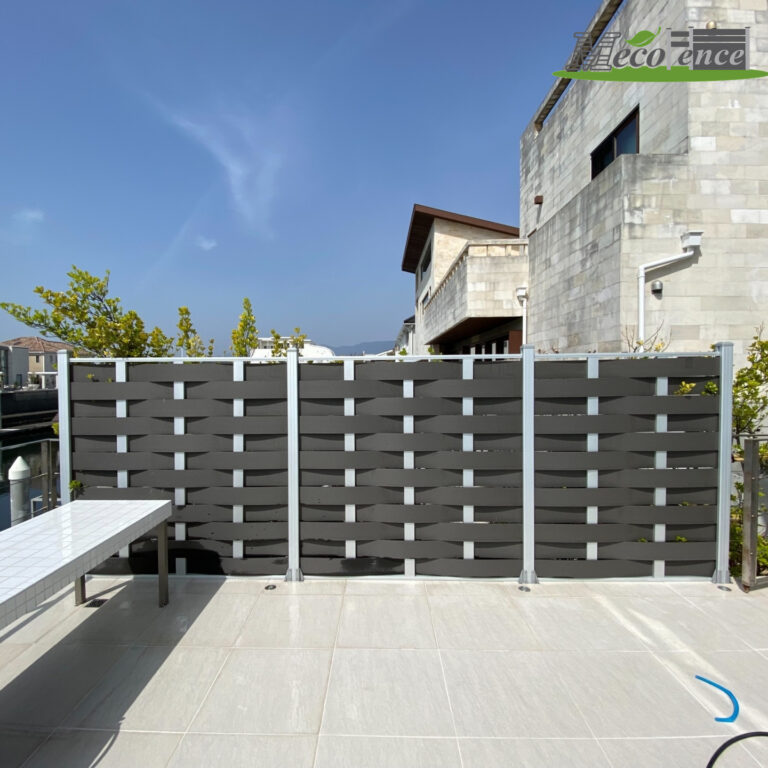

Dark grey boards with a silver frame shown.
Panel construction
Flexible boards.
Aluminium support.

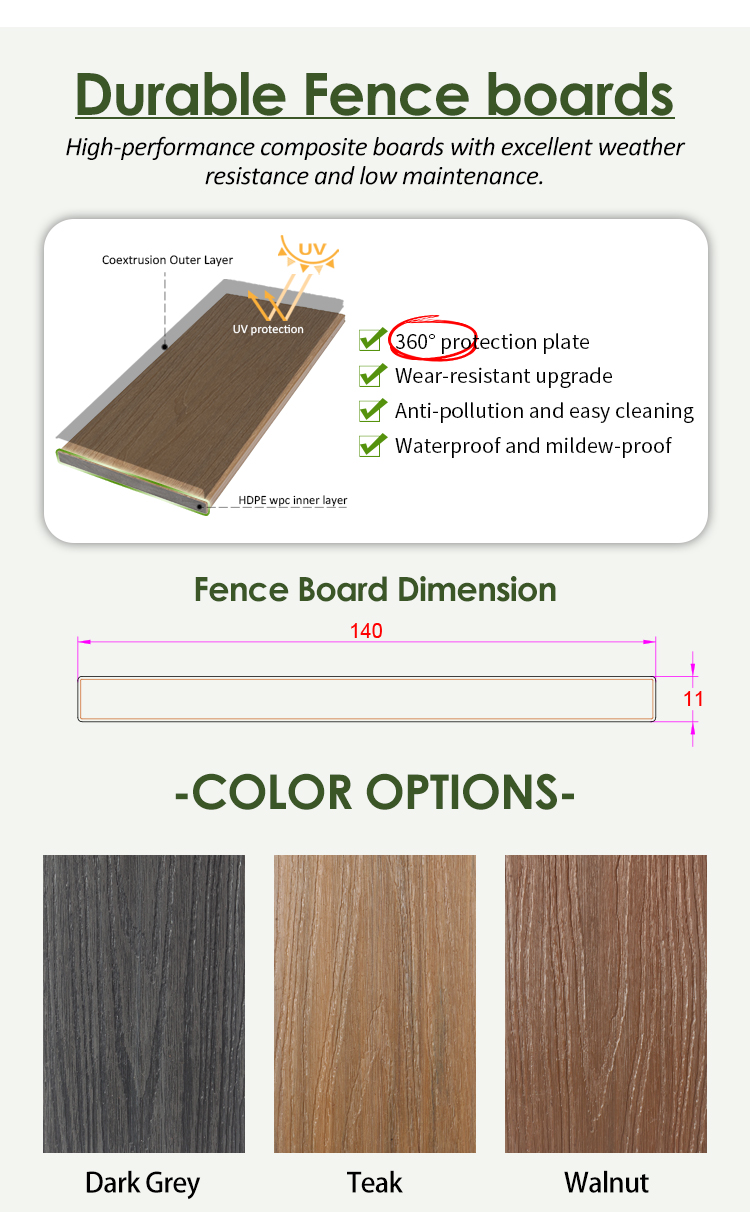

Each 140 × 11 mm board bends around vertical aluminium tubes to form the woven pattern. Top and bottom rails hold the panel within the frame.
Woven board layout
Boards alternate in front of and behind the tubes to create the woven surface.

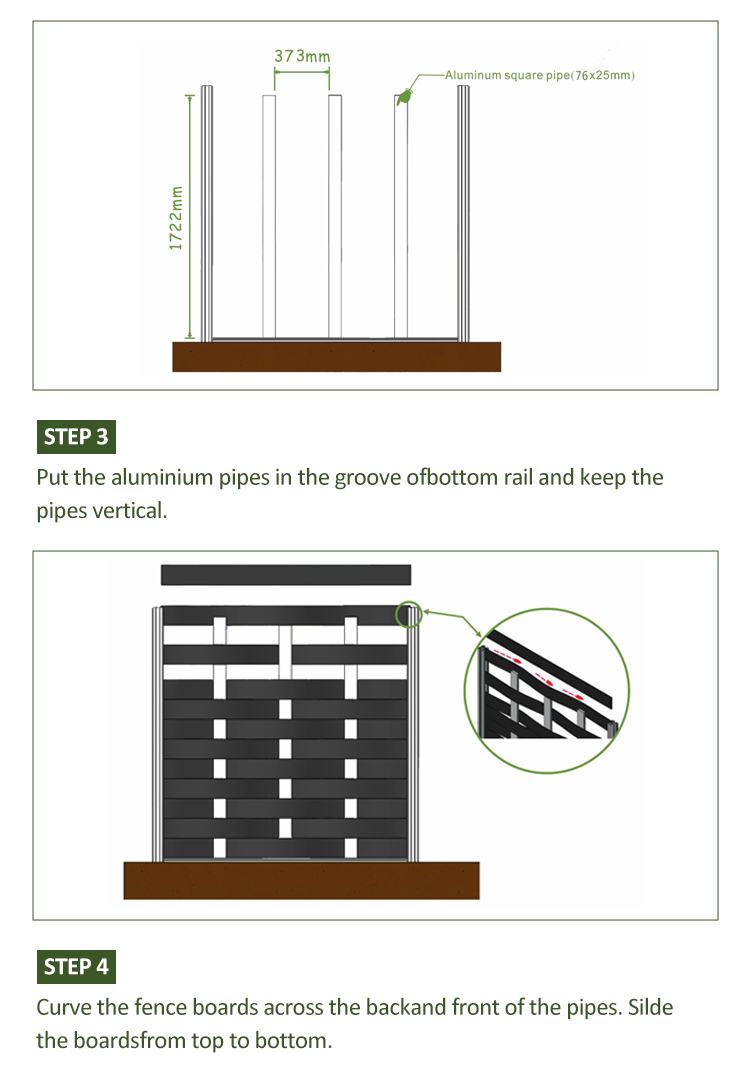

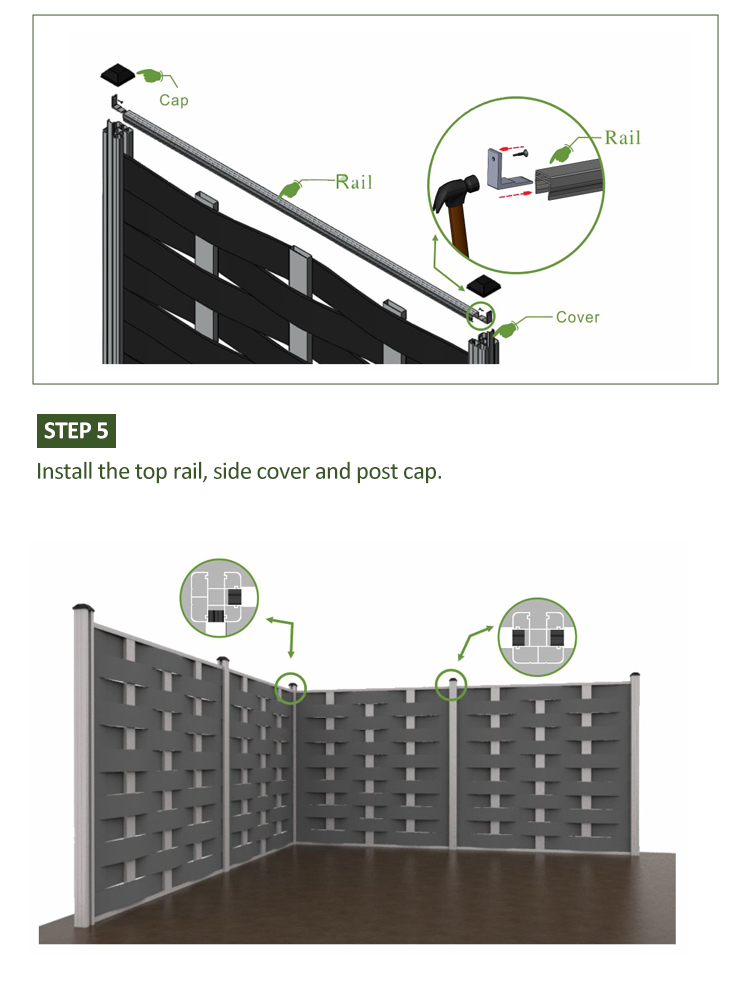

Slide-in assembly
Boards slide down into position around the tubes. The top rail and side covers complete the assembly.
Technical details
Product specifications
Key dimensions and supply details for distributors, contractors and project buyers.
- Board material
- Co-extruded wood-plastic composite (WPC)

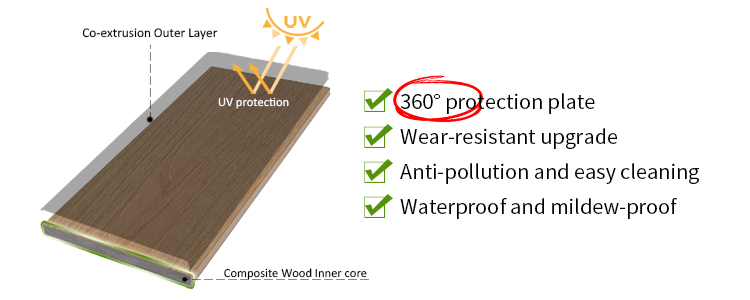

- Protective layer
- Co-extruded Surlyn protective outer layer
- Surface finish
- Wood grain
- Board size (W × T)
- 140 × 11 mm
- Panel layout shown
-
1,800 mm post spacing
1,800 mm fence height - Frame
-
80 × 80 mm posts;
76 × 25 mm aluminium tubes - Supply options
- Fence components, matching gates and OEM packaging
- Reference unit
-
1 set typically refers to one 1,800 × 1,800 mm fence section
Nominal 6 ft × 6 ft format - Minimum order quantity (MOQ)
- 100 sets
- Documentation
- Contact MecoFence for applicable product documentation.
- Certifications
- FSC · CE · ISO 9001 · SGS · REACH
- Warranty
- 20-Year Residential / 15-Year Commercial Warranty

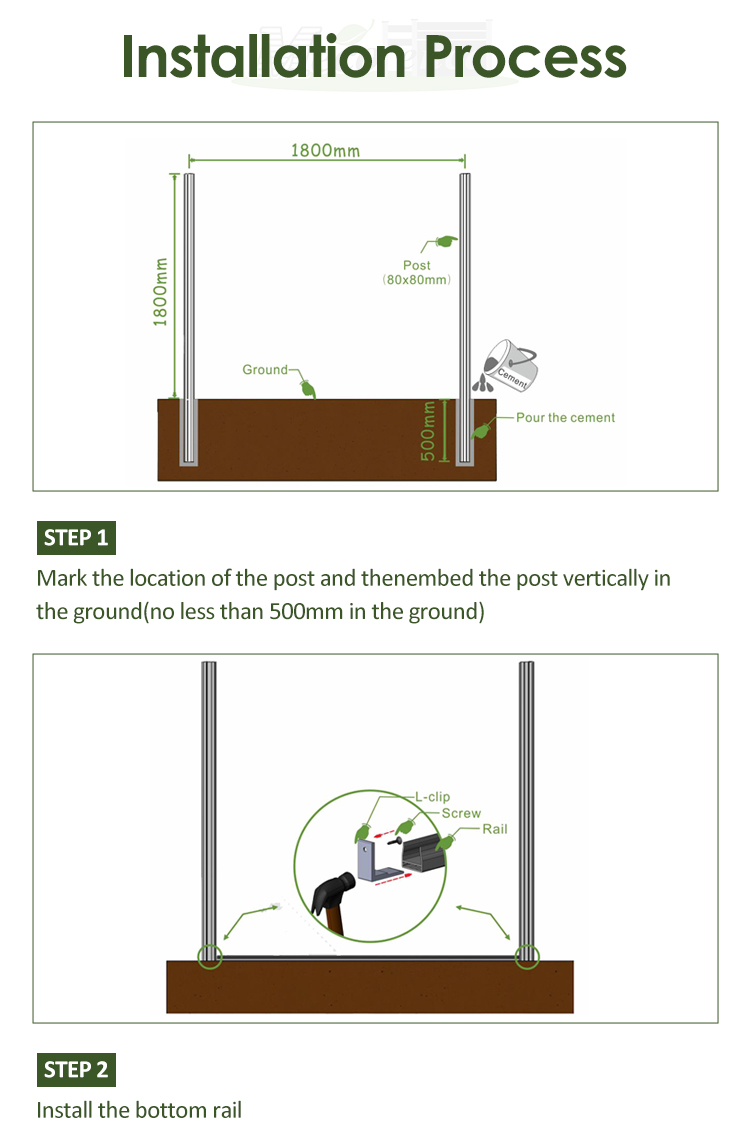

The illustrated installation uses a post embedment depth of at least 500 mm. Final post depth, spacing and components depend on site conditions and the project specification.
Colour & texture
Wood-grain colour options

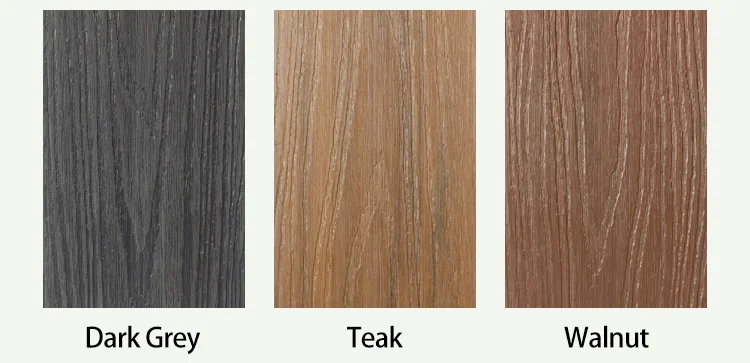

A wood-grain surface complements the woven pattern. The colour references shown are Teak, Walnut and Dark Grey.
Confirm colour availability and review a physical sample before specifying the finish.
Custom colours for project requirements. Available with a minimum order of 200 sets.
System components
Components for a complete fence
MecoFence supplies boards, aluminium supports and finishing components for the fence layout. Quotation requests should include the total fence length, corners, changes in ground level and gate openings.
Components and quantities depend on the selected layout and mounting method.
Ordering & delivery
From sample to shipment
01 / SAMPLE
Get a free sample.
Review the board colour, texture and flexibility with a free MecoFence sample.
02 / CONFIRM
Confirm the order details.
Confirm the specifications, quantity and delivery details with the MecoFence team.
03 / FOB
Shipment & installation guide.
MecoFence arranges shipment and provides an installation guide with the order.
